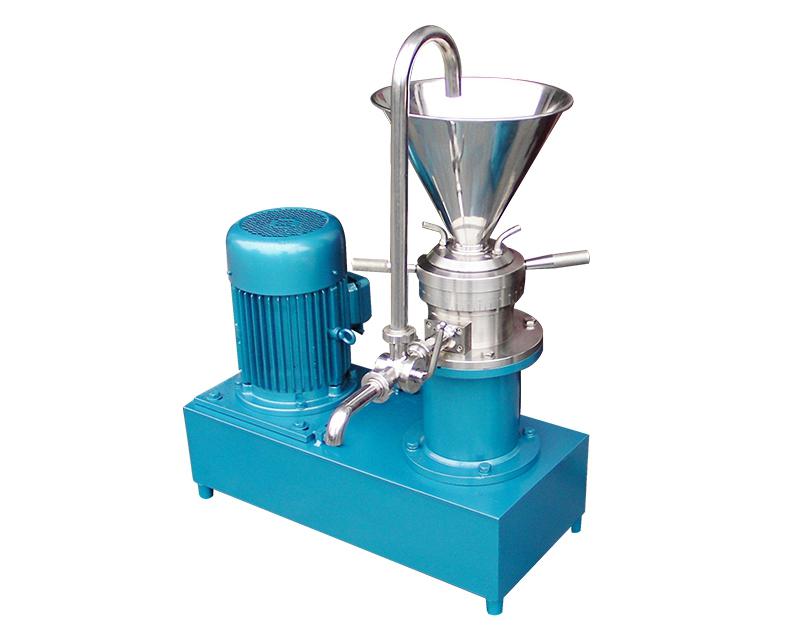

The base and motor of the JMF Split Type Colloid Mill are separated to avoid material leakage which may cause damage to the motor. This series of colloid mills features strong stability, simple operation and long service life. By changing the transmission ratio of the belt drive, they can increase the rotational speed to cater the needs of smaller particles.
Inquiry Form

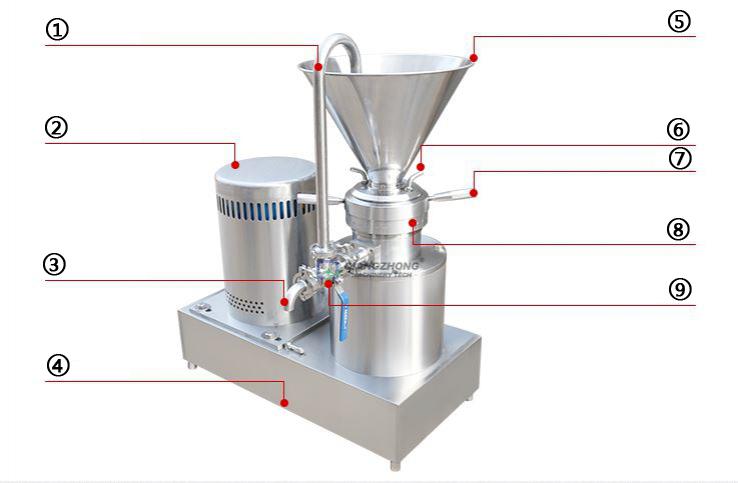

Construction
Circulation Pipe
Motor Cover
Outlet
Base
Hopper
Cooling Pipe Fittings
Handle
Adjust Disc
Three-way Valve
Colloid mills are produced in two structures:
1) Recirculating pipe type: materials can be ground over and over again, used for slightly viscous materials, such as soya and mung beans.
2) Square-mouth outlet type: materials can be ground quickly, used for highly viscous products, such as peanut butter and chili paste.

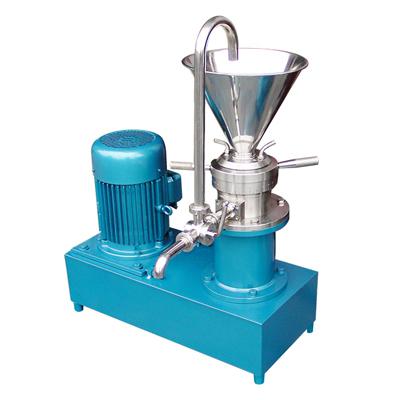

Conventional Colloid Mills

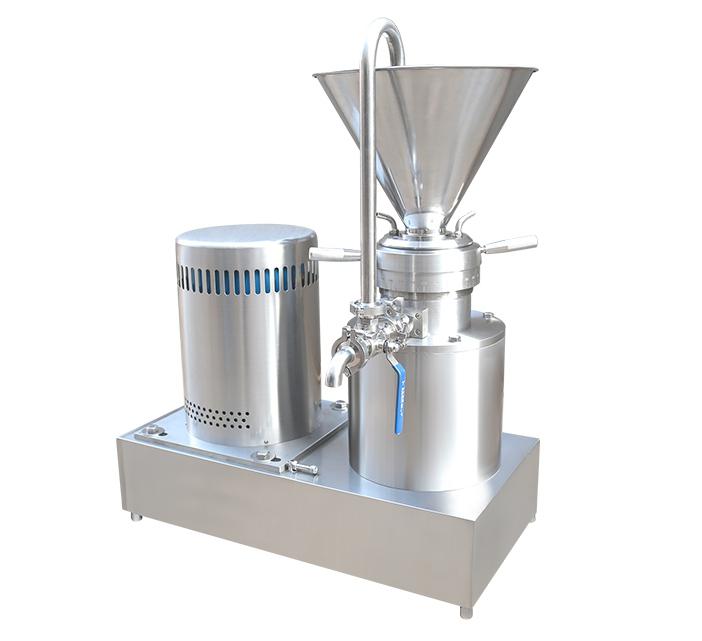

Sanitary Colloid Mills (Recirculating Pipe)

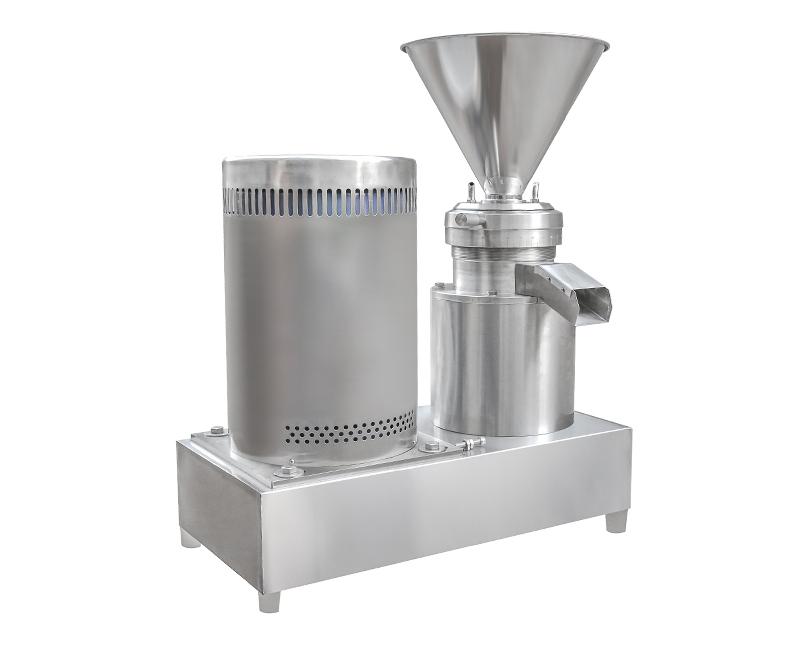

Sanitary Colloid Mills (Square-mouth Outlet)
Model
Power (kw)
Speed (r/min)
Fineness (um)
Output (t/h)
Diameter of Scafe (mm)
Cooling Pipe(mm)
Outlet (mm)
Inlet (mm)
Weight (kg)
Dimensions (LxWxH) mm
JMF-50
1.5
2900
2-40
0.01-0.1
50
10
20
30
60
255x500x700
JMF-65
1.5/2.2
2900
2-40
0.02-0.5
65
10
20
30
65
500x345x675
JMF-80
3
2900
2-40
0.3-1
80
12
25
48
150
700x570x920
JMF-100
5.5/7.5
2900
2-40
0.5-2
100
12
25
66
240
800x645x900
JMF-120
7.5
2900
2-40
0.5-3
120
12
32
66
250
800x645x900
JMF-140
7.5/11
2900
2-40
0.5-4
140
12
32
66
275
800x750x1020
JMF-200
15/18.5
2900
2-40
1-10
200
12
38
100
400
900x850x1200
Features
With the exception of the motor, all parts that have contact with materials are made of sanitary stainless steel to resist contamination.
The maximum rotational speed of colloid mill can reach 2900 (r/min), capable of crushing materials instantaneously.
Colloid mills can adjust the degrees of fineness in order to serve different materials efficiently.
Quick changeover makes it simple to install and easy to clean.
