SRH Homogenizer
Sanitary stainless steel mixers and agitators, Homogenizer equipment

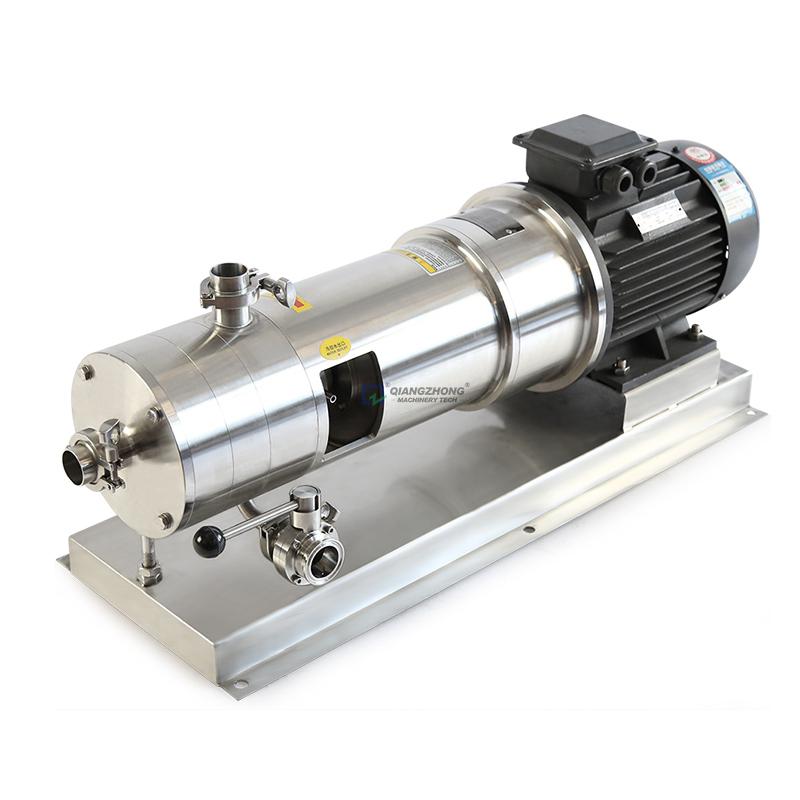

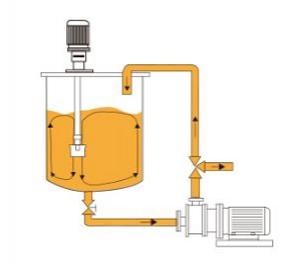

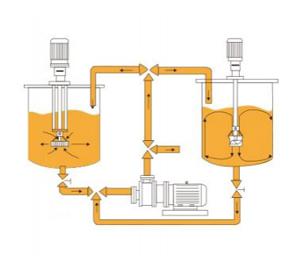

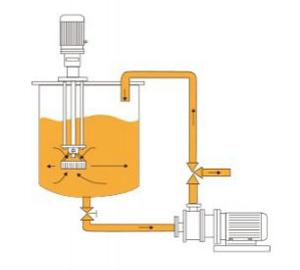

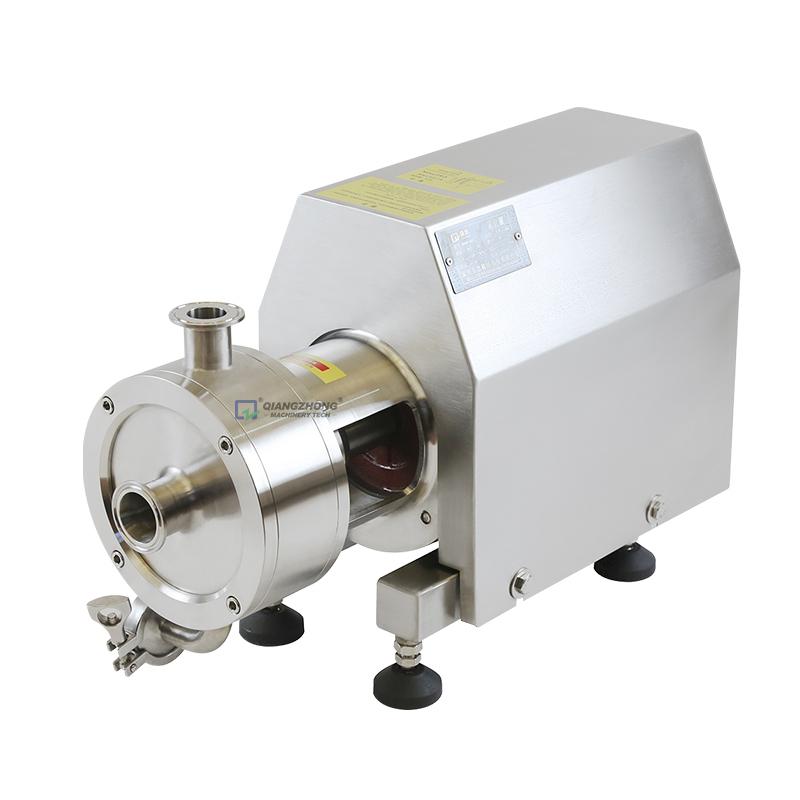

The SRH homogenizer is a kind of integrated emulsion equipment, commonly incorporated with an emulsifying machine and tank. Based on the stator-rotor structure, rotor turns at high speeds to create strong shear force. It can disperse, emulsify and homogenize ingredients mixed with immiscible liquid, solid and gas in a flash. After recirculation, high quality final products are attained.
Here are some types of homogenizers available for your selection, or please contact us for customized products.
Three-stage Homogenizer

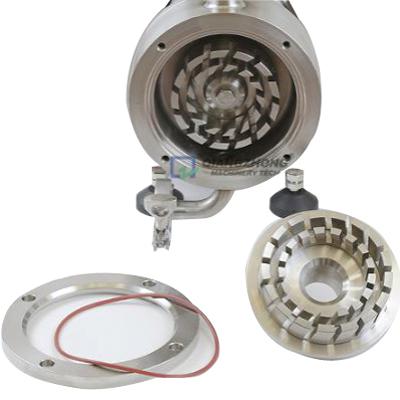

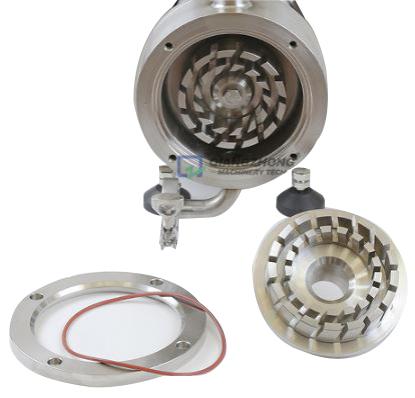

Composed of three sets of stator-rotor, the three-stage homogenizer can process materials three times for better emulsion fineness and higher efficiency.
| Model | Power (kw) | Speed (r/min ) | Flow Rate(m3/h) | Inlet | Outlet |
| SRH-3-60 | 4 | 2900 | 0-4 | DN40 | DN40 |
| SRH-3-100 | 7.5 | 0-8 | DN50 | DN40 | |
| SRH-3-120 | 11 | 0-12 | DN50 | DN40 | |
| SRH-3-140 | 15 | 0-18 | DN50 | DN50 | |
| SRH-3-165 | 22 | 0-22 | DN65 | DN50 | |
| SRH-3-200 | 37 | 0-30 | DN80 | DN50 | |
| SRH-3-220 | 55 | 0-40 | DN100 | DN65 | |
| SRH-3-240 | 75 | 0-55 | DN100 | DN65 | |
| SRH-3-260 | 90 | 1440 | 0-65 | DN125 | DN80 |
| SRH-3-300 | 110 | 0-80 | DN125 | DN100 | |
| SRH-3-360 | 132 | 0-100 | DN150 | DN125 | |
| SRH-3-380 | 160 | 0-120 | DN150 | DN125 | |
| SRH-3-400 | 185 | 0-140 | DN150 | DN125 |
One-stage Homogenizer

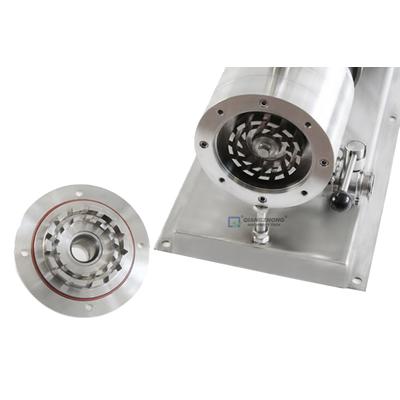

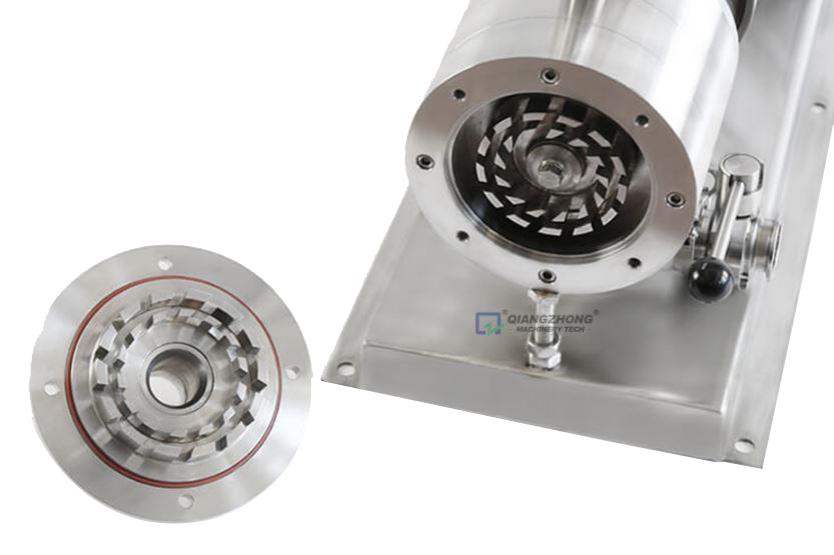

One-stage homogenizer consist of one set of stator-rotor.
| Model | Power (kw) | Speed (r/min ) | Flow Rate (m3/h) | Inlet | Outlet |
| SRH-1-60 | 1.1 | 2900 | 0-1 | DN40 | DN32 |
| SRH-1-80 | 1.5 | 0-1.5 | DN40 | DN32 | |
| SRH-1-100 | 2.2 | 0-3 | DN40 | DN32 | |
| SRH-1-130 | 4 | 0-4 | DN40 | DN32 | |
| SRH-1-140 | 5.5 | 0-5 | DN50 | DN40 | |
| SRH-1-165 | 7.5 | 0-8 | DN50 | DN40 | |
| SRH-1-180 | 11 | 0-12 | DN65 | DN50 | |
| SRH-1-190 | 15 | 0-20 | DN65 | DN50 | |
| SRH-1-200 | 22 | 0-25 | DN65 | DN50 | |
| SRH-1-210 | 30 | 0-35 | DN80 | DN65 | |
| SRH-1-230 | 45 | 0-50 | DN100 | DN80 | |
| SRH-1-245 | 55 | 0-75 | DN100 | DN80 | |
| SRH-1-260 | 75 | 0-90 | DN125 | DN100 | |
| SRH-1-275 | 90 | 0-110 | DN125 | DN100 | |
| SRH-1-280 | 132 | 0-130 | DN125 | DN100 |
-
Fine
-
Medium
-
Coarse
