Single Bag Filter

Composed of a variety of bag types, (31, #2, #3, and #4) and one stainless-steel support basket, the single bag filter is commonly used to remove impurities in water, beverages, or chemical solutions. This filter features a large filtration area, a high efficiency, simple operation, and easy maintenance. The adjustable height allows for an exceptional versatility to meet different requirements.

Inquiry Form

Here are two main types of single bag filter available for customers to choose from.

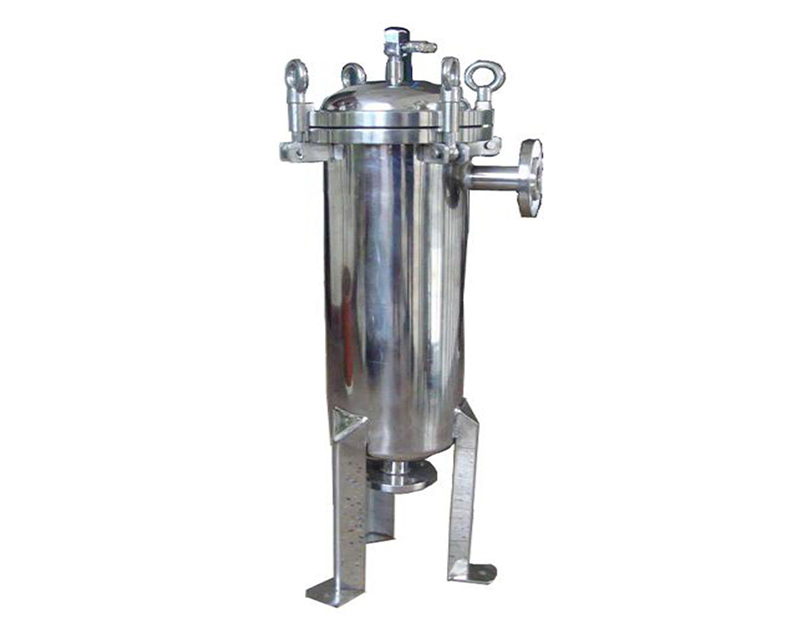

Sideline Single Bag Filter

Model	A	B	C	D	E	H
ZTCD-1S	540	410	140	45	190	550	206
ZTCD-2S	880	730	140	45	190	800	206
ZTCD-3S	380		100	40	150	450	133
ZTCD-4S	350	350	100	40	150	450	133

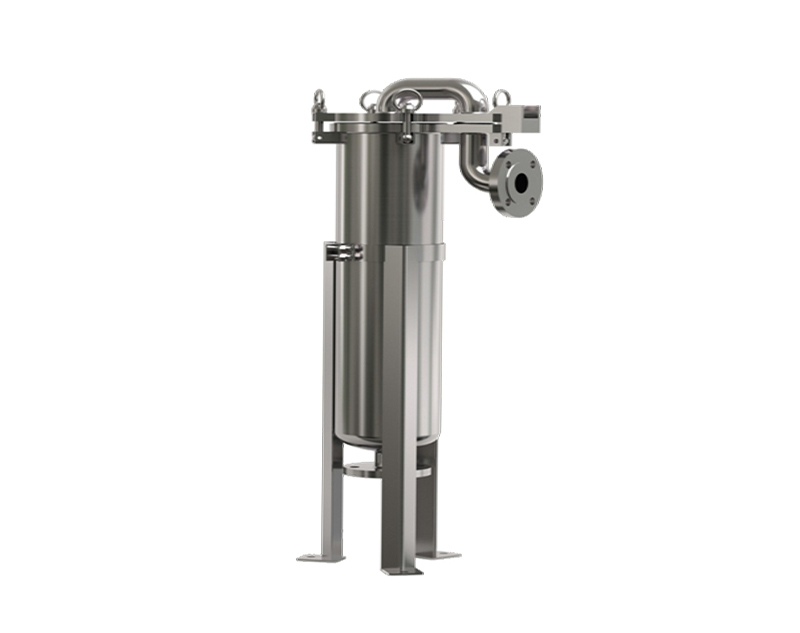

Topline Single Bag Filter

Model	A	B	C	D	E	H
ZTDD-1S	450	380	140	95	280	550	206
ZTDD-2S	880	730	140	95	280	800	206
ZTDD-3S	280	240	100	70	190	450	133
ZTDD-4S	400	350	100	70	190	450	133
