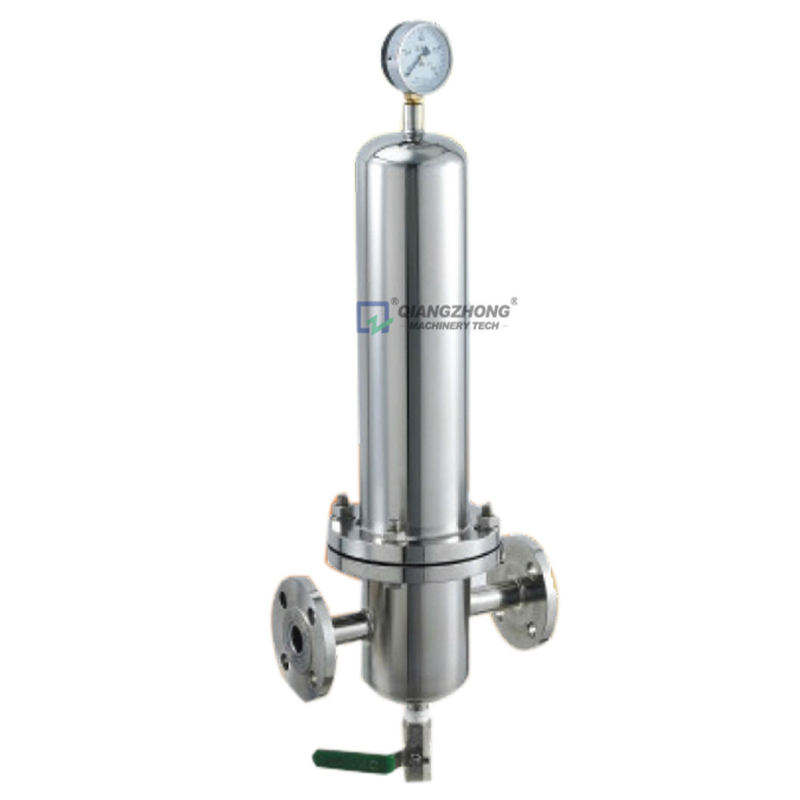

Steam Filter
The steam filter is an excellent choice for removing entrained moisture and solid impurities in steam inside culinary steam and clean steam applications. Using sintered stainless-steel filter elements, it features an easy maintenance, comfortable operation, high efficiency, and long service life.
Standard Specifications:
Max. Operating Pressure: 1.0Mpa
Max. Operating Temperature: 110°C
Specifications:| Model | NO.of Cartridges | A | B | C | D | E | F |
| ZTKO-1R5 | 1*5″ | 150 | 102 | 65 | 90 | 60 | 95 |
| ZTKO-1R10 | 1*10″ | 300 | 102 | 65 | 90 | 60 | 95 |
| ZTKO-1R20 | 1*20″ | 550 | 102 | 65 | 90 | 60 | 95 |
| ZTKO-1R30 | 1*30″ | 800 | 102 | 65 | 90 | 60 | 95 |
| ZTKO-1R40 | 1*40″ | 1050 | 102 | 65 | 90 | 60 | 95 |
