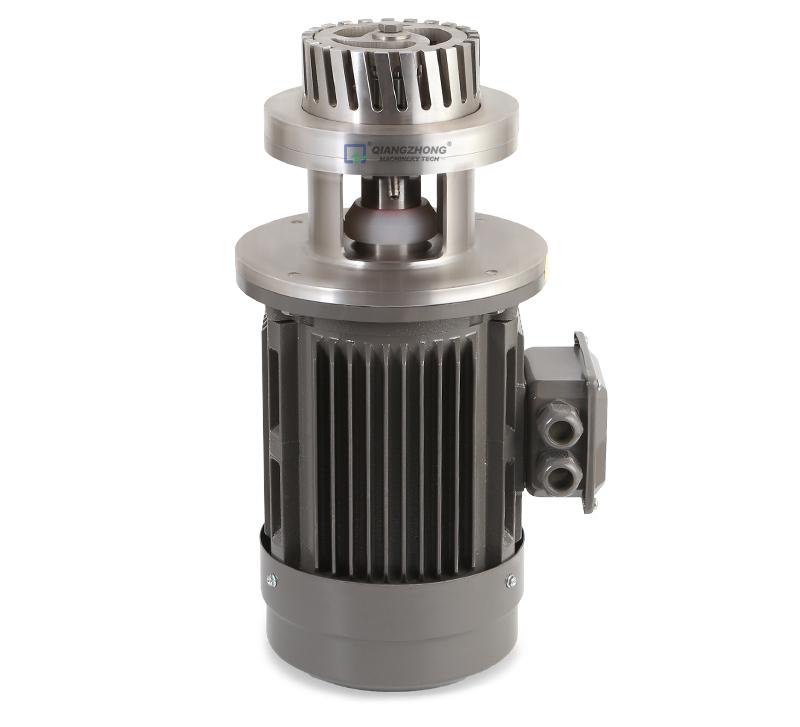

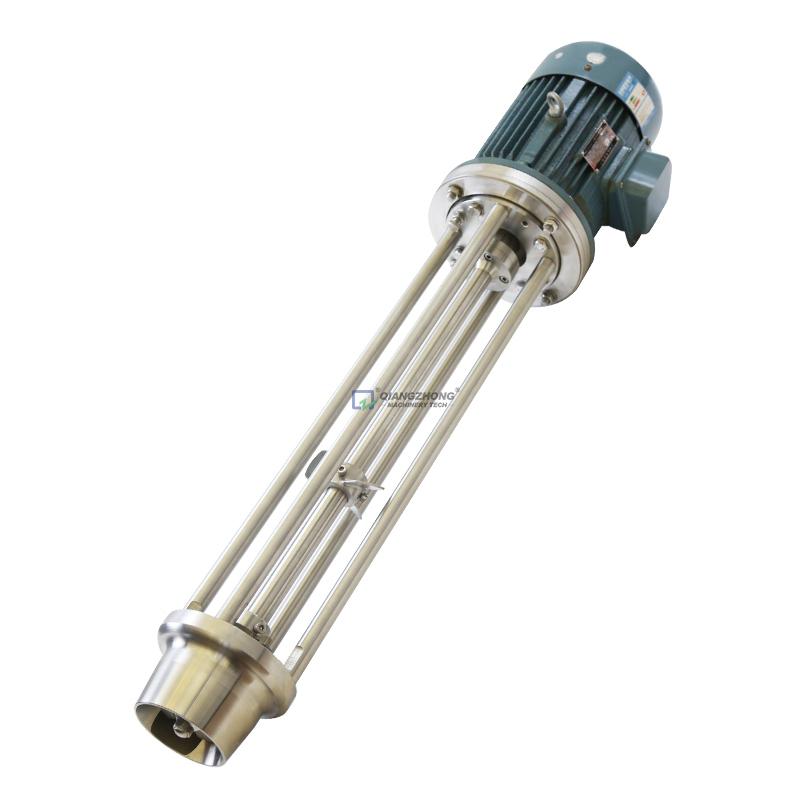

High Shear Mixer
Sanitary stainless steel mixers and agitators, High shear mixing, High speed mixer
Based on the stator-rotor structure, this high shear mixer can emulsify, homogenize and disperse materials at high speed. It is especially suitable for insoluble additives like CMC. It is widely used in food, beverage, adhesives and cosmetic industries.
-

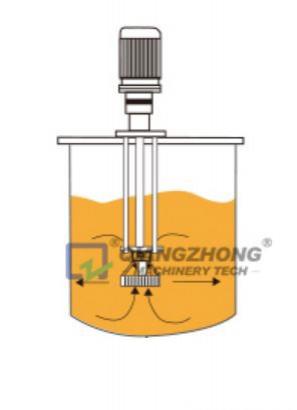

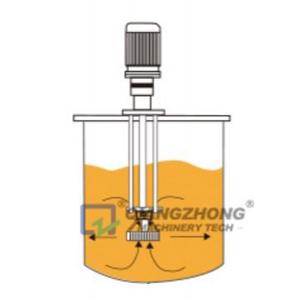

Because of centrifugal force caused by high-speed rotor, materials are propelled into working space from the top and bottom simultaneously.
-
Entering the gap between rotor and stator by centrifugal force, materials are extruded and clashed to achieve the primary stage of emulsification and dispersion.
-
The high speed of rotating rotor creates strong shear force to crush, disperse, emulsify and homogenize materials. Meanwhile, materials exit from the working area.
-
After several circulations, materials can achieve complete dispersion, emulsification and homogenization.
Here are some high shear mixers available for your selection, or please contact us for customized products.

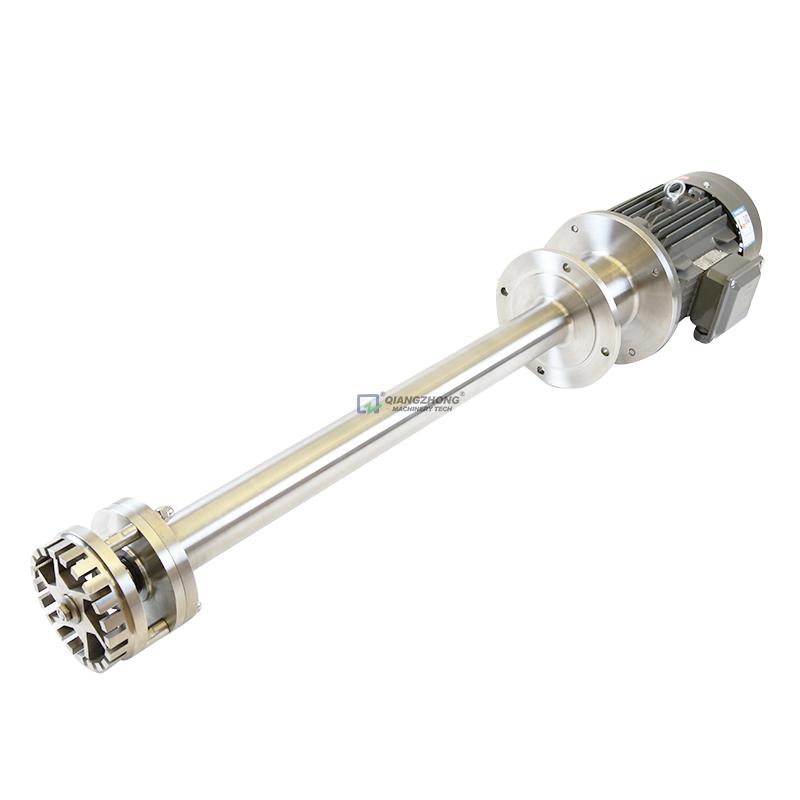

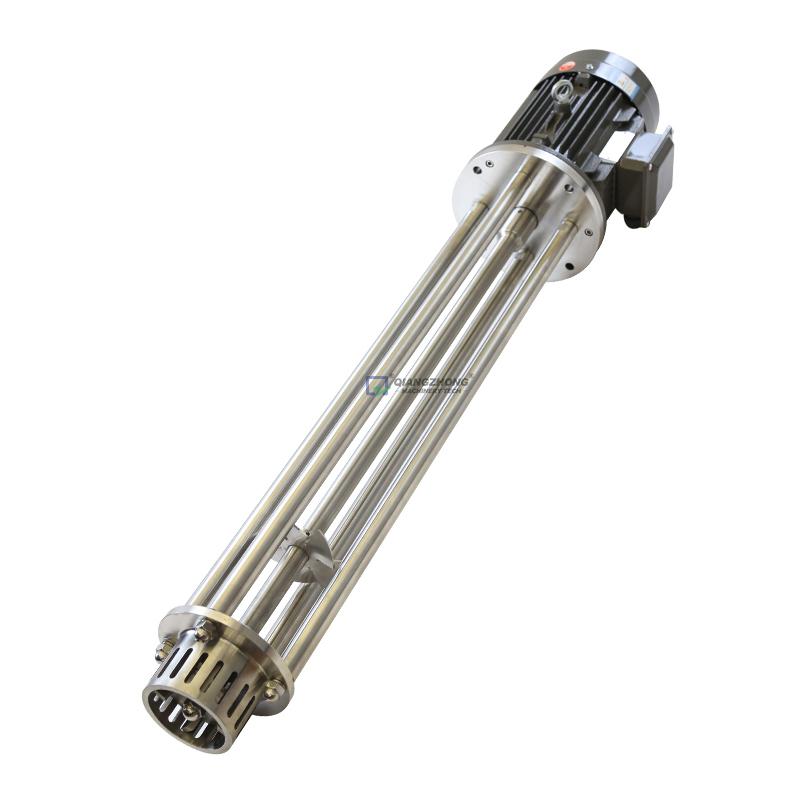

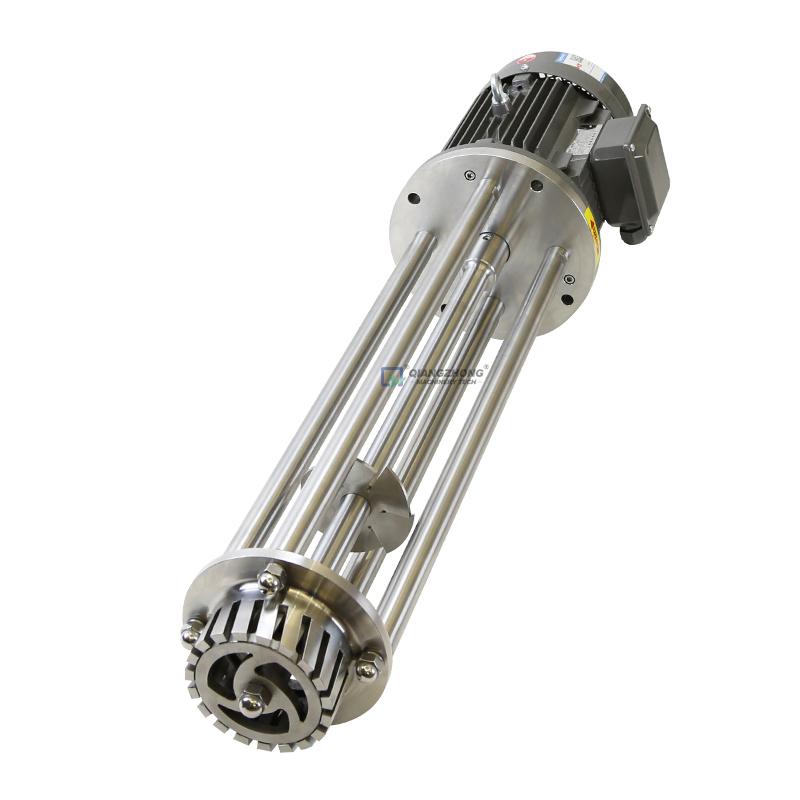

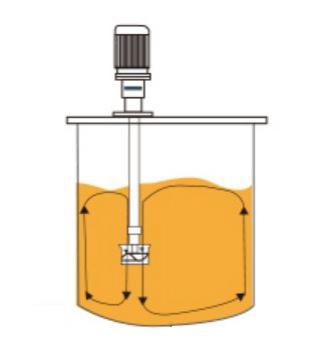

Ⅰ Type High Shear Mixer

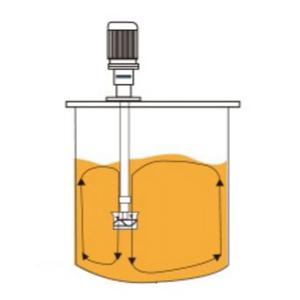

Ⅱ Type High Shear Mixer

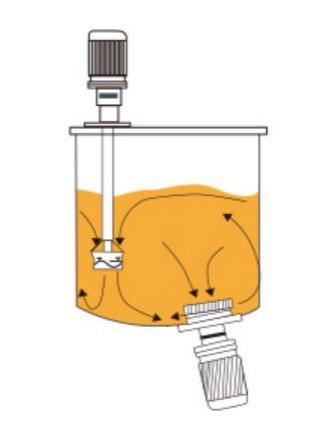

Ⅲ Type High Shear Mixer

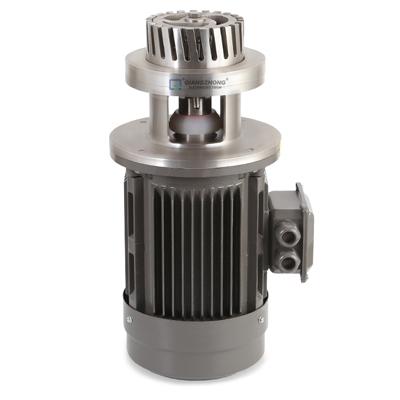

Ⅳ Type High Shear Mixer
Emulsifying Machine
| Model | Power (kw) | Speed (r/min) | Operating Volume (L) | D | D1 | P | L | M |
| WRL-90 | 1.5 | 2900 | 10 〜50 | 80 | 140 | 200 | 355 | 165 |
| WRL-100 | 2.2 | 50 〜100 | 88 | 145 | 200 | 650 | 165 | |
| WRL-120 | 4 | 100 〜300 | 120 | 180 | 250 | 750 | 215 | |
| WRL-140 | 7.5 | 300〜800 | 140 | 210 | 300 | 900 | 265 | |
| WRL-160 | 11 | 500〜1500 | 160 | 230 | 350 | 1050 | 300 | |
| WRL-180 | 18.5 | 600〜2000 | 180 | 260 | 350 | 1200 | 300 | |
| WRL-200 | 22 | 1450-1500 | 800〜2500 | 200 | 270 | 350 | 1200 | 300 |
| WRL-220 | 30 | 1000 〜3500 | 240 | 320 | 400 | 1355 | 350 | |
| WRL-240 | 37 | 1500 〜5000 | 260 | 340 | 400 | 1395 | 350 |
-

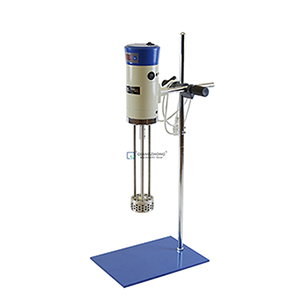

- Laboratory Shear Mixer The laboratory shear mixer can shear and emulsify powder materials in the liquid medium, ideal for food, cosmetic, biological and chemical experiments in the lab. The rotor turns at high speed to mix materials efficiently in limited physical space.
