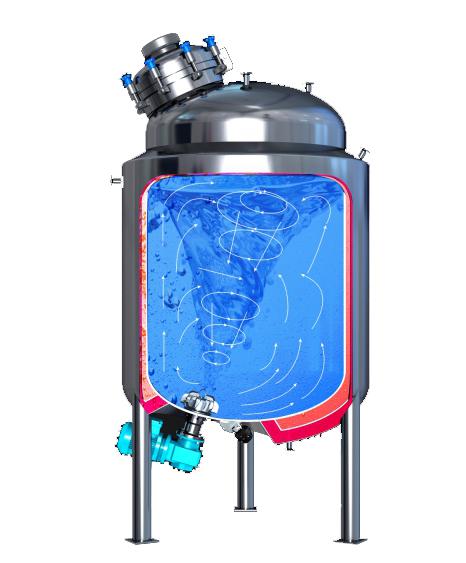

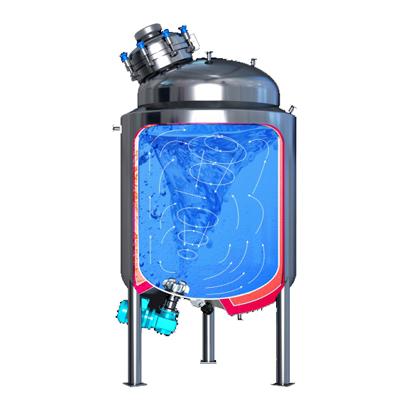

Replacing traditional shaft-driven systems, the magnetic agitator utilizes magnetic force to complete mixing tasks. In the fully-closed vessel, it lowers the risks of liquid leakage and cross contamination. For the sake of mixing materials at the bottom, themagnetic agitator is commonly bottom mounted.
The soluble powder or liquid materials are propelled into a cavity formed by rotating blades, then reaching the mixing blade. This kind of force maintains the continuous mixing and performs the tasks of dissolution, dispersion, mixing and homogenization.

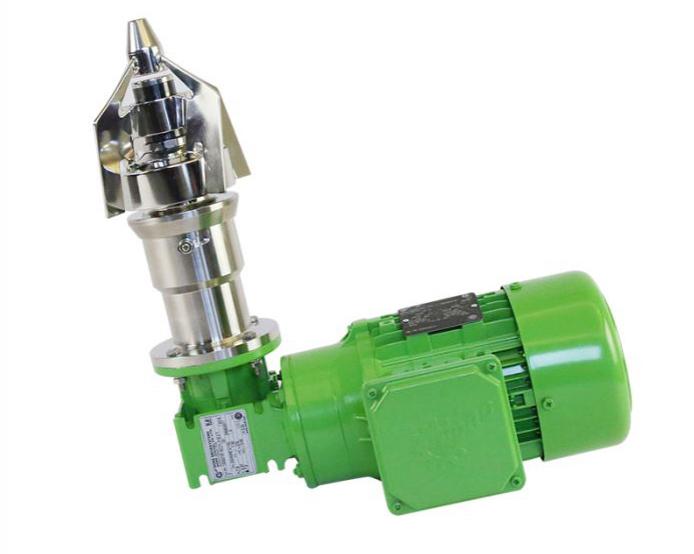

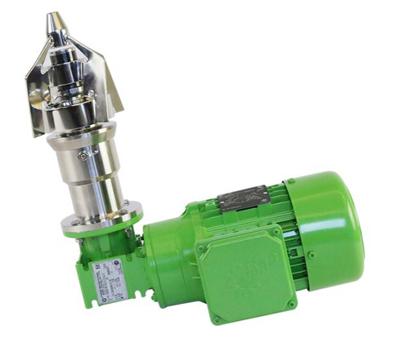

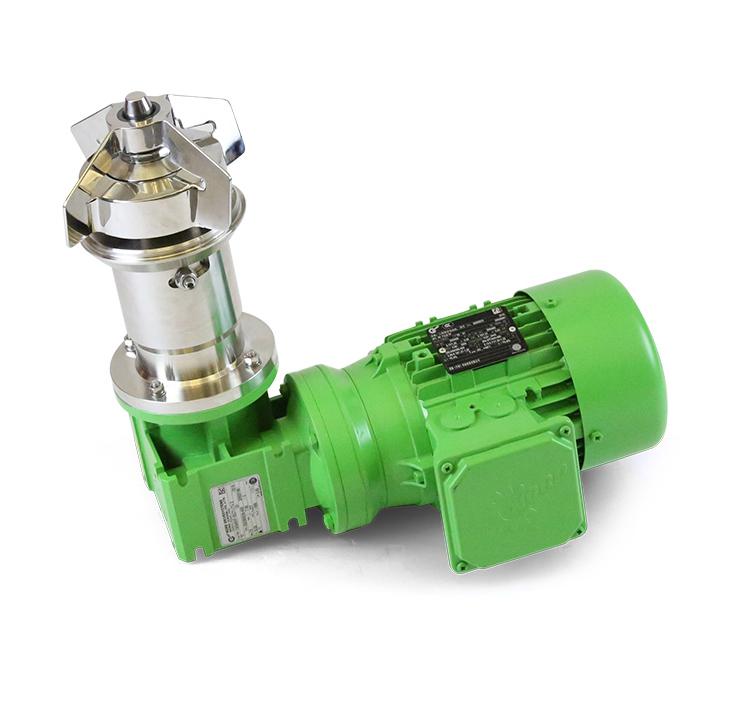

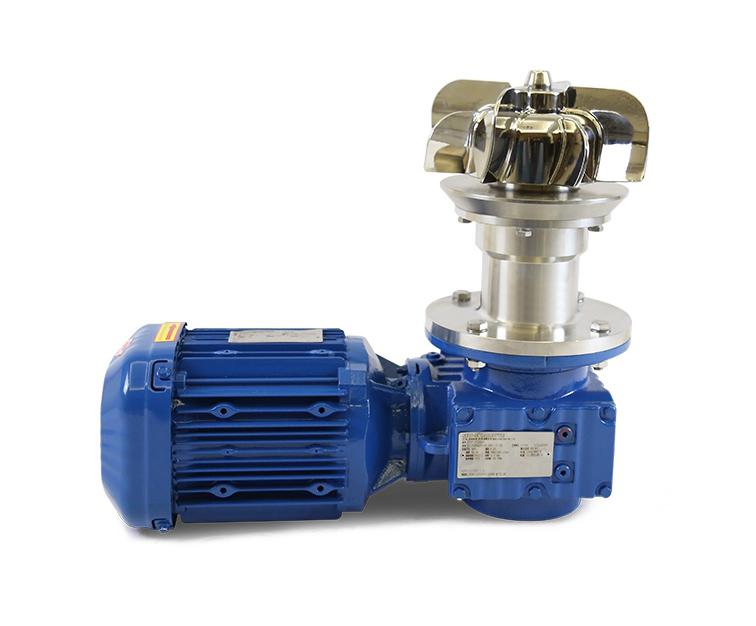

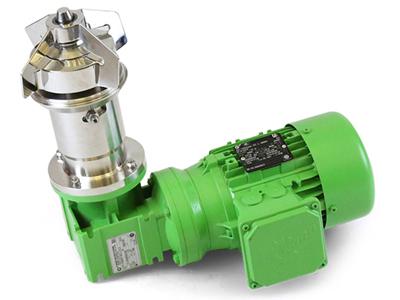

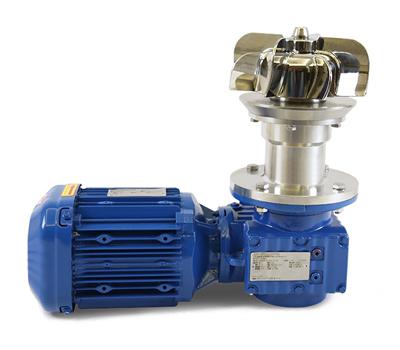

We provide magnetic agitator with two structures :Here are some magnetic agitators available for your selection, or please contact us for customized products.
Model | Power (kw) | Speed (50Hz) (RPM) | Agitating Volume (L) |
QMT-50L | 0.25 | 450 | 10-50L |
QMT-100L | 0.25 | 450 | 50-100L |
QMT-500L | 0.55 | 450 | 100-500L |
QMT-1000L | 0.55 | 450 | 500-1000L |
QMT-2000L | 1.1 | 450 | 1000-2000L |
QMT-5000L | 2.2 | 450 | 2000-5000L |
QMT-10000L | 3 | 355 | 5000-10000L |
QMT-20000L | 4 | 355 | 10000-20000L |
