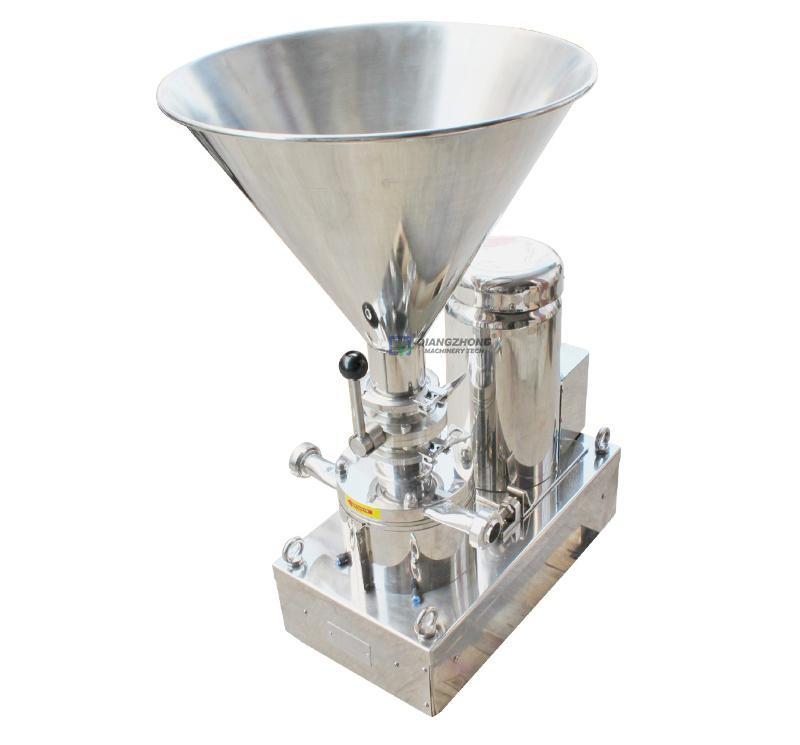

Hybrid Powder Mixer

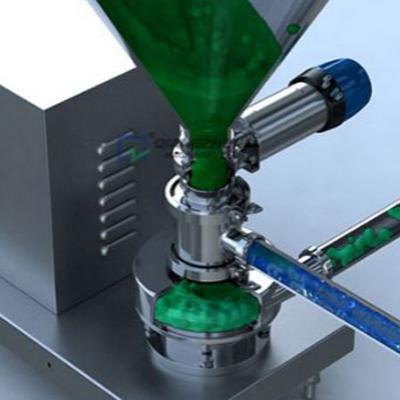

The hybrid powder mixer can mix and pump powder and liquid materials quickly, ideal for the dairy, beverage and food industries. It takes advantage of high speed impeller to mix materials down the line and then convey them to the outside. It is highly durable as the maximum temperature of subject materials can reach 80℃.
| Model | Material Temperature | Power (kw) | Diameter of Impeller (mm) | Operating Pressure (Mpa) | Inlet and Outlet (mm) | Weight (kg) | Dimensions (mm) |
| 10T/H | ≤80°C | 3.0 | 170 | 0.3 | 38 | 112 | 735x500x1005 |
| 20T/H | ≤80°C | 5.5 | 170 | 0.3 | 51 | 125 | 732x500x1005 |
| 30T/H | ≤80°C | 7.5 | 170 | 0.3 | 51 | 155 | 732x500x1005 |

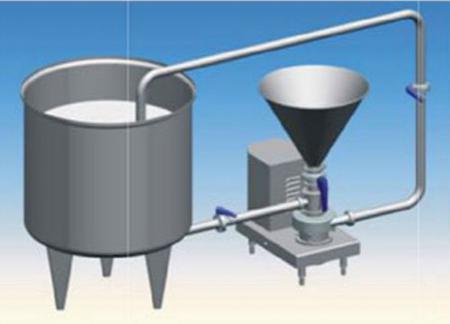

- Conventional Type
Designed for the dissolution of powder materials, this type of hybrid powder mixer is mainly used for solutions containing less than 15% solid, such as milk powder, pectin and additive.

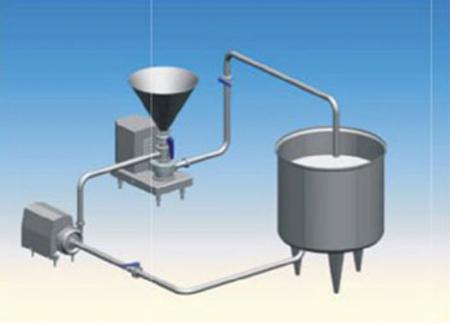

- Added Centrifugal Pump
Added a centrifugal pump between machine and tank, it can help to feed materials and accelerate the dissolution of dry powder, suitable for the solution containing less than 25% solid.

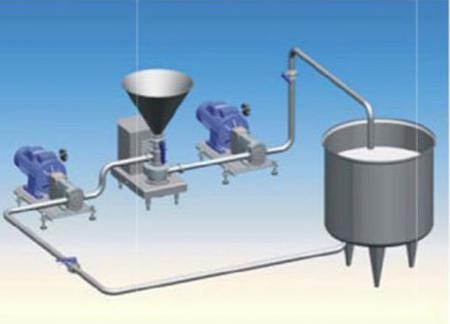

- Added Rotary Lobe Pump
Two added rotary lobe pumps, it utilizes their superior performance of conveying viscous materials to handle the solution containing more than 50% solid materials.
