Our Sanitary stainless steel equipment serves various industries with high sanitary requirements(including food, beverage, personal, care, and pharmaceutical applications)
Stainless steel mixing tanks offer a combination of functions like mixing, dispersion, emulsification and homogenization to serve various industries such as food, coating, pharmaceutical and chemical industries. We commonly work with a wide range of stainless steel types and utilize flanges to connect the vessel with the lid. We can provide tapping services if required and heating and cooling devices to meet any industrial need.
Inquiry Form
Custom Stainless Steel Mixing Tanks
Here are some types of stainless steel mixing tanks available, or please contact us for a customized product.

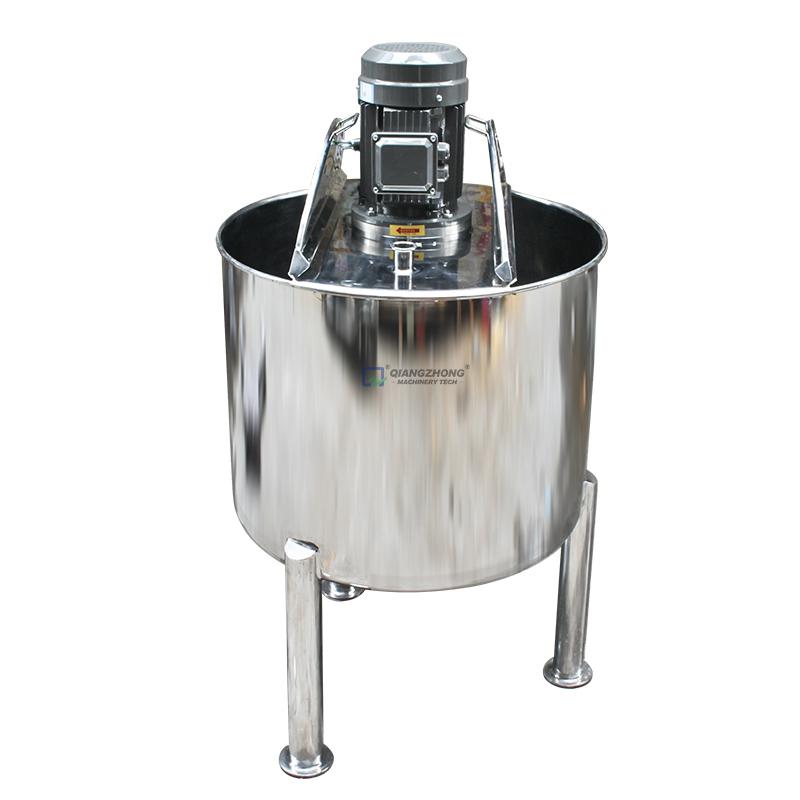

Stainless Steel Process Tank with Open Top
The stainless steel process tank with open top is economical and easy to feed materials.
Specifications:
Volume (L)
Power (kw)
Height (mm)
Diameter (mm)
Speed (r/min)
Pressure
Temperature
100
0.75
500
550
36 (0-120 Available)
≤0.09Mpa (Normal Pressure)
< 160°C
200
0.75
600
650
300
0.75
600
800
500
0.75
800
800
600
0.75
800
1000
800
0.75
1000
1000
1000
1.5
1220
1000
2000
2.2
1500
1300
3000
3
1500
1600

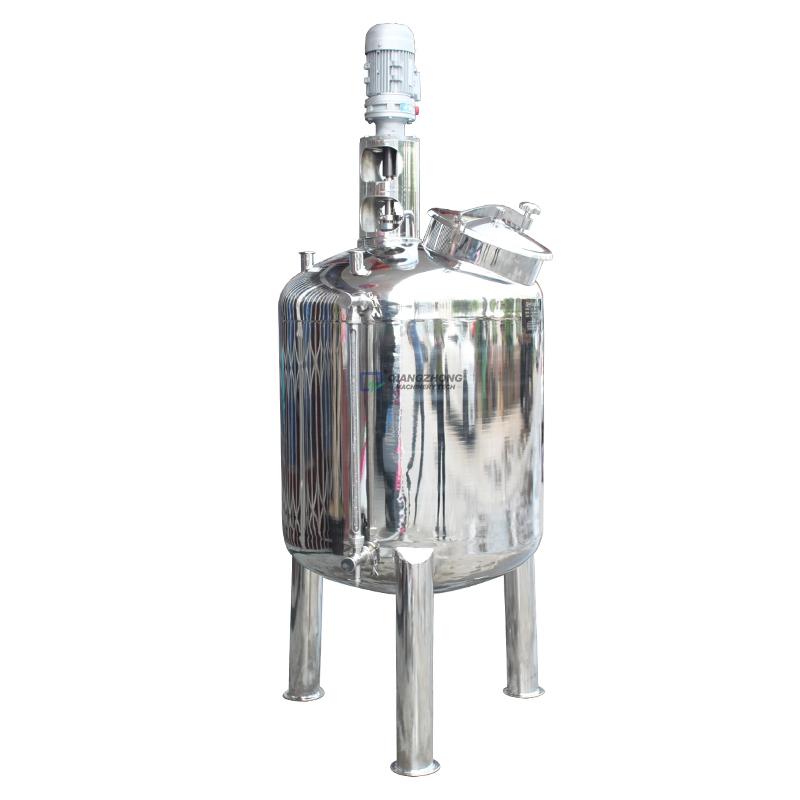

Stainless Steel Process Tank with Closed Top
The stainless steel process tank with closed top is a kind of sealed tank for sanitary purposes.
Specifications:
Volume (L)
Total Height(mm)
Diameter of Inlet and Outlet (mm)
Size (mm)
Power (kw)
Speed (r/min)
500
2750
38
840x1000
0.55
35, 43, 60/ Stepless Speed Reducer
600
2850
38
920x1000
0.55
700
2850
38
990x1000
0.55
800
3000
38
950x1220
0.55
900
3000
38
1010x1220
0.55
1000
3150
51
1060x1220
0.75
1500
3350
51
1160x1500
0.75
2000
3410
51
1340x1500
1.1
3000
4000
51
1410x2000
1.5
4000
4250
51
1620x2000
1.5
5000
4300
51
1810x2000
2.2
Stainless Steel Process Tank with Oval Bottom
The stainless steel process tank with oval bottom is a kind of sealed tank. It can withstand high pressure and keep the vessel sanitary, ideal for high demand jobs.
Specifications:
Volume (L)
Power (kw)
Weight (kg)
Speed (r/min)
Voltage (V)
100
0.75
40
36
380
300
0.75
60
500
0.75
80
1000
1.5
160
2000
3
400
3000
5.5
600
5000
7.5
800
Types of Agitators
According to properties of materials and your specific requirements, we will choose the optimum mixing type and rotating speed.

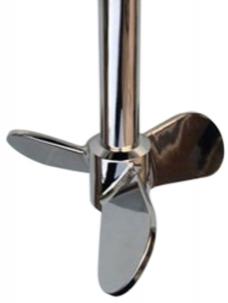

3 Blade Propeller

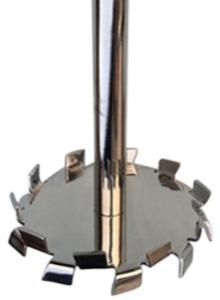

Turbine Dispersing Disk

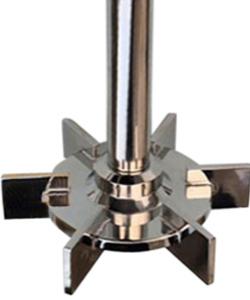

6 Blade Turbine

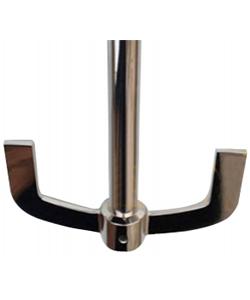

Anchor Stirrer

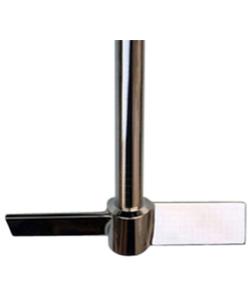

Paddle Agitator with Flat Blade and Oblique Blade

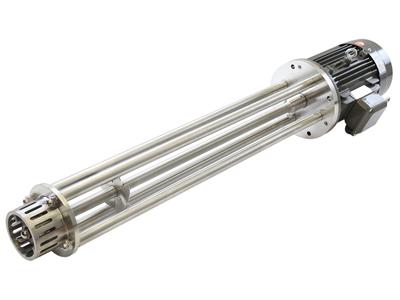

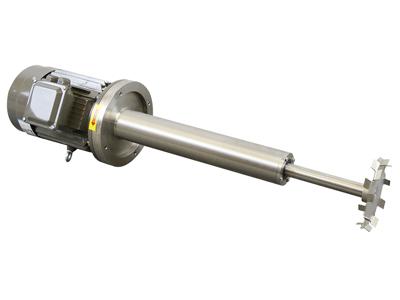

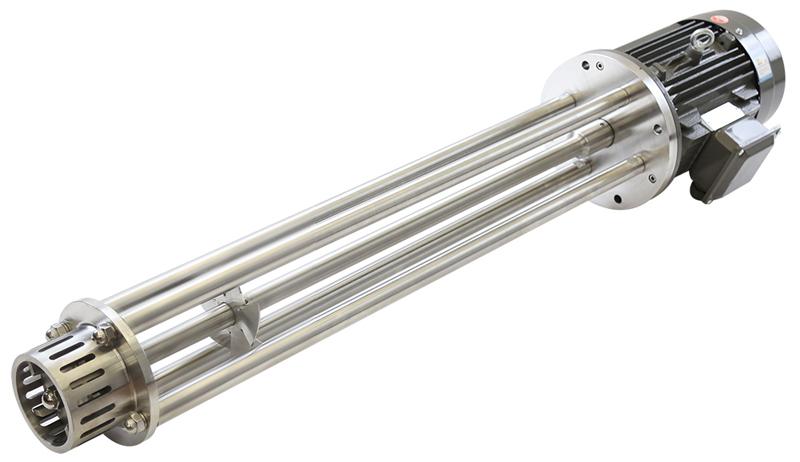

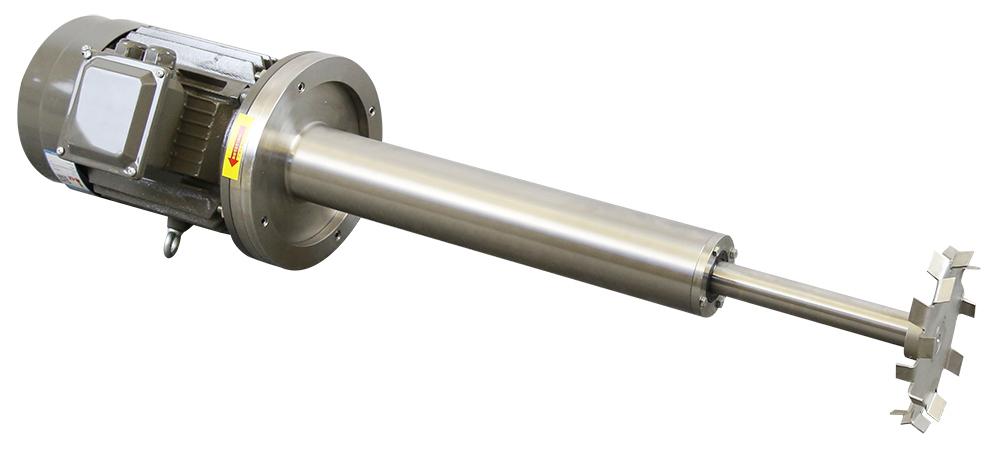

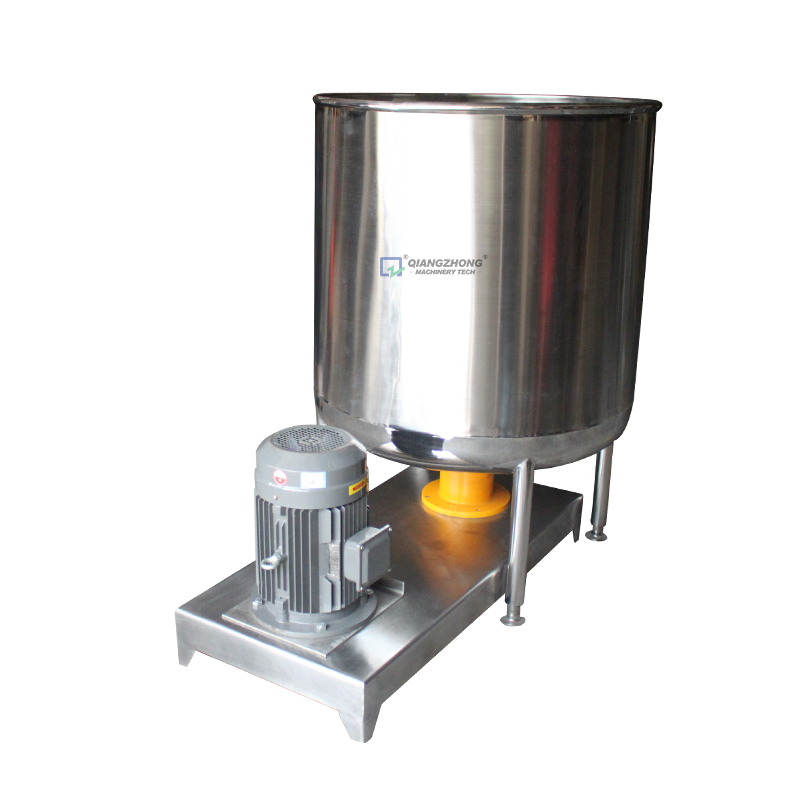

Apart from mixing, we still need to disperse and blend materials fast. Incorporated with high shear mixer and dispersion blade agitator, our stainless steel mixing tank can perform better.
Founded in 1999, Wenzhou Qiangzhong Machinery Technology Co. has been devoted to the production of sanitary mixing and liquid processing equipment. Manufactured from high precision stainless steel, our main products include colloid mills, mixers, agitators, sanitary pumps, sanitary filters, diverse tanks and vessels. They are utilized by companies operating in food, dairy, beverage, pharmaceutical, and chemical industries.
