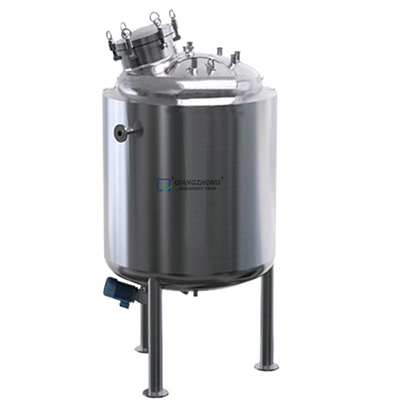

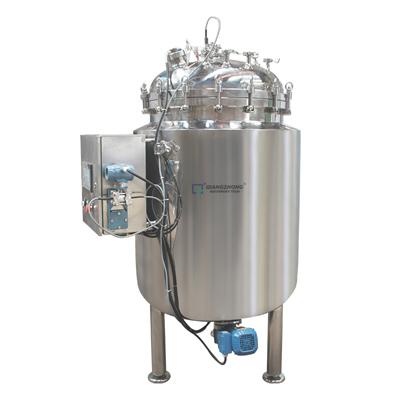

Stainless Steel Mixing Tanks, Equipped with Magnetic Agitator
The containment shell of the magnetic agitator separates the inside of the tank from the surrounding atmosphere. Equipped with a magnetic agitator, this type of stainless steel mixing tanks can process materials under the hermetically sealed and sterile conditions, ideal for sanitary industries such as pharmaceutical, cosmetics and bioengineering industries.
We can provide different types of heads and jackets, mounting the magnetic agitator to the side or bottom if needed. Besides, CIP(Clean-in-Place) and SIP(Sterilize-in-Place) systems both are applied in our mixing tanks.
| Model | Volume (L) | Power (kw) | Diameter (mm) | Inlet and Outlet (mm) | Speed (r/min) |
| HD-10 | 100 | 1.5 | 600x550 | 38 | 120-1400 |
| HD-20 | 200 | 2.2 | 700x800 | 38 | |
| HD-30 | 300 | 2.2 | 800x750 | 38 | |
| HD-40 | 400 | 2.2 | 800x800 | 38 | |
| HD-50 | 500 | 2.2 | 840x1000 | 38 | |
| HD-60 | 600 | 2.2 | 900x1000 | 38 | |
| HD-70 | 700 | 2.2 | 950x1000 | 38 | |
| HD-80 | 800 | 2.2 | 950x1220 | 38 | |
| HD-90 | 900 | 2.2 | 1010x1220 | 38 | |
| HD-100 | 1000 | 2.2 | 1060x1220 | 51 |
