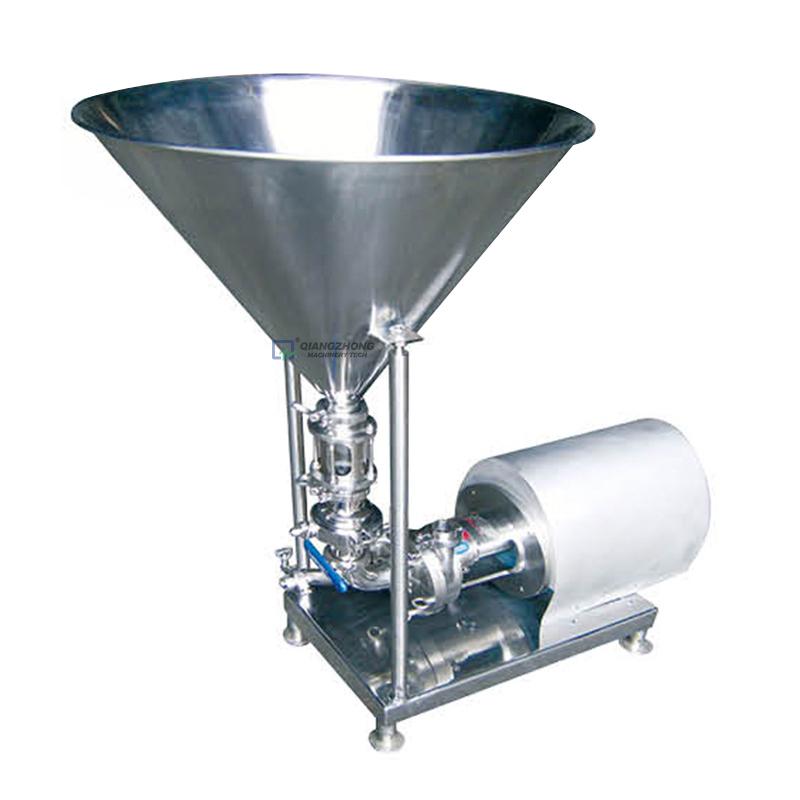

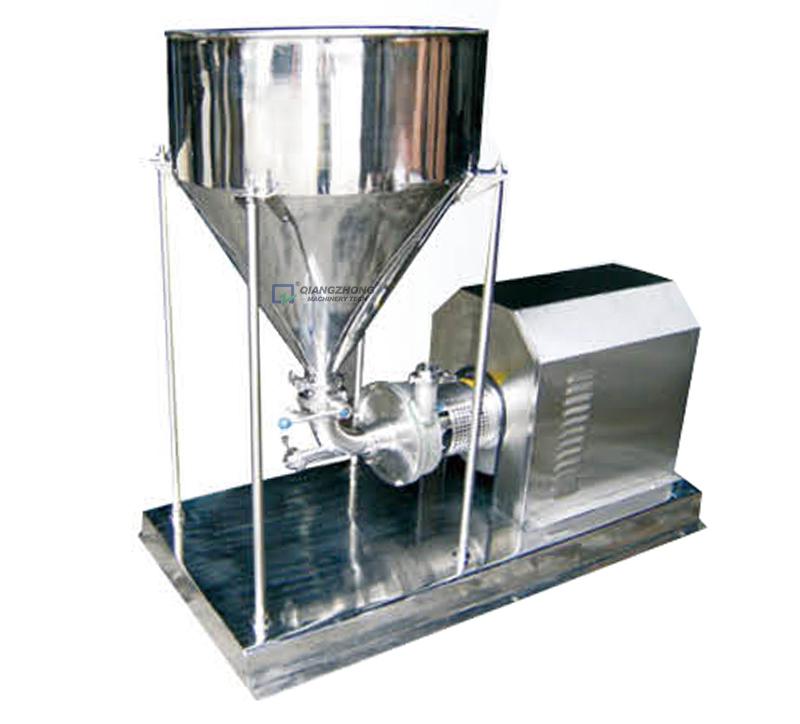

SRH-H Shear Inline Mixers
SRH-H shear inline mixers are effective for high demand operations like dissolution, dispersion, emulsification and homogenization, they are well suited for the production of milk, jams, ice cream, dressings and sauces.
Compared with conventional mixers, its special impeller design can mix materials with high efficiency. Meanwhile, it can achieve online CIP cleaning to avoid unnecessary downtime. Here are various types of SRH-H shear inline mixers available for selection.
| Model | Diameter of Outlet x Inlet(Liquid) | Flow Rate (T/h) | Inlet (Solid) | Power (kw) | Speed (r/min ) | Operating Rate (T/H) |
| SRH-H-100 | 1.5"x1.2" | 0-5 | 2" | 3/4 | 2900 | 0-1.5 |
| SRH-H-130 | 2"x1.5" | 0-10 | 2.5" | S.5/7.5 | 2900 | 0-2 |
| SRH-H-160 | 2.5"x2" | 0-20 | 3" | 11/15/18.5 | 2900 | 0-3 |
| SRH-H-190 | 2.5"x2" | 0-30 | 3.574" | 22/30 | 2900 | 0-4 |
| SRH-H-210 | 3"x2.5" | 0-40 | 4 "/5" | 30/37 | 2900 | 0-5 |
| A | B | C | D | E | F | K | L | H | G |
| 73 | 172 | 425 | 135 | 320 | 75 | 350 | 600 | 920 | 450 |
| 91 | 175 | 455 | 155 | 405 | 15 | 450 | 8900 | 1100 | 600 |
| 91 | 159 | 495 | 155 | 435 | 200 | 500 | 1000 | 1250 | 600 |
| 114 | 159 | 495 | 185 | 435 | 200 | 500 | 1000 | 1250 | 750 |
| 114 | 159 | 535 | 185 | 435 | 250 | 600 | 1000 | 1250 | 750 |
