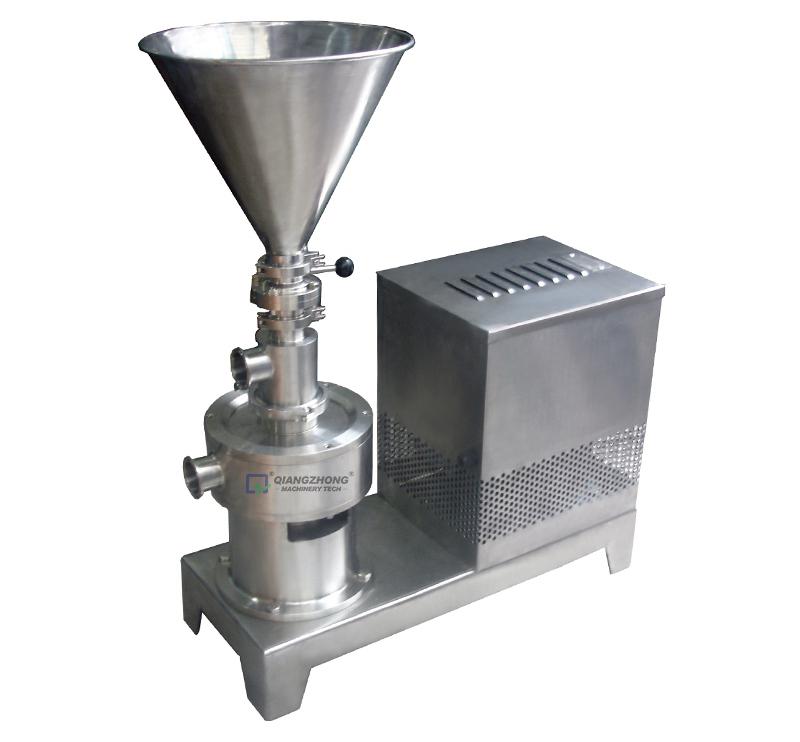

Solid Liquid Mixer
Aiming for mixing and emulsifying powder and liquid materials, the solid liquid mixer is popular in the food, cosmetics, chemical and pharmaceutical industries. It can mix various types of solid materials circularly under vacuum condition. Within a short time, it can create stable dispersion and emulsification and reduce particle size for high quality products.
Composed of body structure and mixing pump gear, powder liquid mixing equipment is installed vertically. It pumps fluid and solid materials through a double-layer pipe, so materials have less chance of condensation. During the process, the fluid enters the body of mixer at high speed. The vacuum condition in the middle of stator and rotor is ready for the solid from the valve at the tank bottom.
Specifications: One-stage Solid Liquid Mixer| Model | Power (kw) | Speed (r/min) | Flow Rate (m³/h) |
| SRH-B-80 | 1.5 | 2900 | 0-1.5 |
| SRH-B-100 | 22 | 2900 | 0-3 |
| SRH-B-120 | 4 | 2900 | 0-4 |
| SRH-B-140 | 5.5 | 2900 | 0-5 |
| SRH-B-165 | 7.5 | 2900 | 0-8 |
| SRH-B-180 | 11 | 2900 | 0-12 |
| SRH-B-185 | 15 | 2900 | 0-18 |
| SRH-B-200 | 22 | 2900 | 0-25 |
| SRH-B-210 | 30 | 2900 | 0-35 |
| SRH-B-230 | 45 | 2900 | 0-50 |
| SRH-B-245 | 55 | 2900 | 0-75 |
| SRH-B-260 | 75 | 2900 | 0-90 |
| SRH-B-275 | 90 | 2900 | 0-110 |
| SRH-B-280 | 132 | 2900 | 0-130 |
| Model | Power (kw) | Speed (r/min) | Flow Rate (m3/h) |
| SRH-B3-80 | 4 | 2900 | 0-1.5 |
| SRH-B3-100 | 5.5 | 2900 | 0-3 |
| SRH-B3-120 | 7.5 | 2900 | 0-4 |
| SRH-B3-140 | 11 | 2900 | 0-5 |
| SRH-B3-165 | 15 | 2900 | 0-8 |
| SRH-B3-180 | 22 | 2900 | 0-12 |
| SRH-B3-185 | 30 | 2900 | 0-18 |
| SRH-B3-200 | 45 | 2900 | 0-25 |
| SRH-B3-210 | 55 | 2900 | 0-35 |
| SRH-B3-230 | 75 | 2900 | 0-50 |
| SRH-B3-245 | 90 | 2900 | 0-75 |
