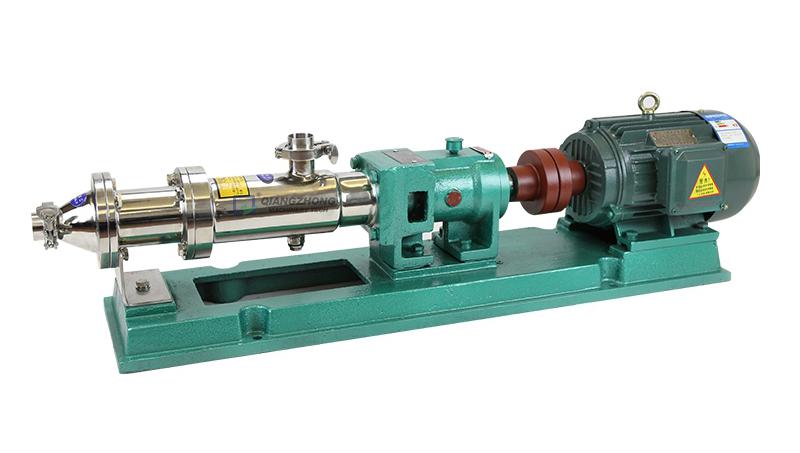

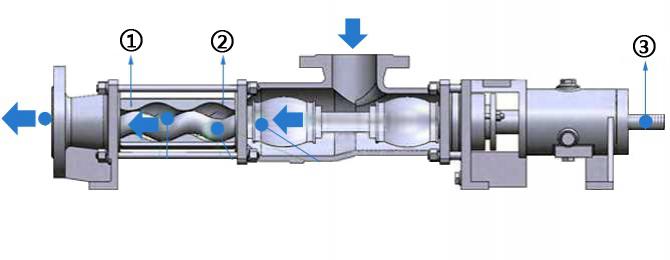

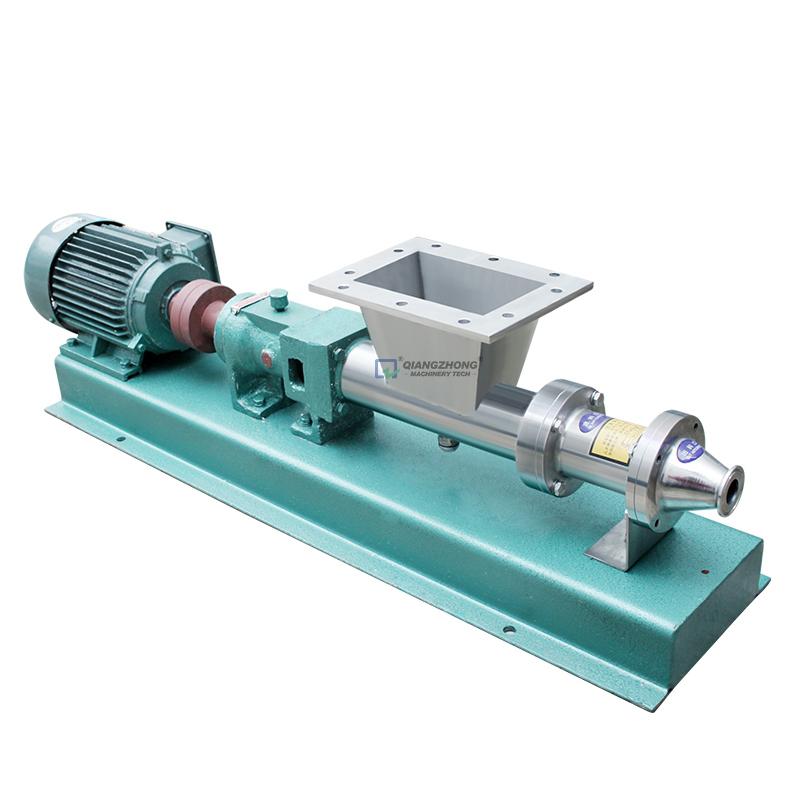

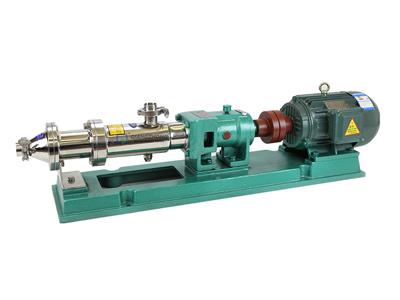

The single screw pump takes advantage of the rotating screw axis to achieve self-priming, which is ideal for transferring of a variety of fluids. The operating pressure ranges from 3.4-340 N/cm2, when the flow rate reaches 18600cm3/min. Due to the low inertia of inner rotating parts in the pump, it is excellent at maintaining a high speed. The continuous uniform flow features a low vibration and low noise.

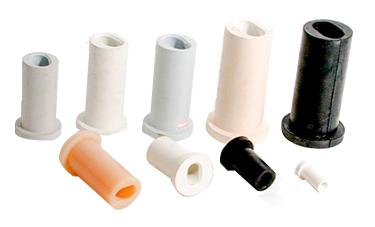

Made of new materials, the stator features corrosion resistance, aging resistance, high temperature resistance and flame resistance.

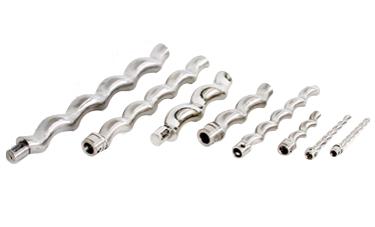

Made of sanitary stainless steel, the rotor carries out the liquefaction process to become durable and corrosion resistant.
Model | Power (kw) | Speed (r/min ) | Flow Rate (m³/h ) | Inlet and Outlet (mm) |
G10-1 | 0.37 | 1400 | 0.5 | DN20 |
G15-1 | 0.55 | 960 | 1 | DN25 |
G20-1 | 0.75 | 960 | 1.5 | DN32 |
G25-1 | 1.1 | 960 | 2 | DN32 |
G30-1 | 1.5 | 960 | 3 | DN40 |
G35-1 | 2.2 | 960 | 5 | DN50 |
G40-1 | 3 | 960 | 7 | DN50 |
2.2 | 720 | 5.5 | DN50 | |
G45-1 | 4 | 960 | 9 | DN50 |
3 | 720 | 7 | DN50 | |
G50-1 | 5.5 | 960 | 13 | DN65 |
4 | 720 | 10 | DN65 | |
G55-1 | 7.5 | 960 | 18 | DN65 |
5.5 | 720 | 13 | DN65 | |
G65-1 | 11 | 720 | 30 | DN80 |
G85-1 | 15 | 720 | 60 | DN100 |
