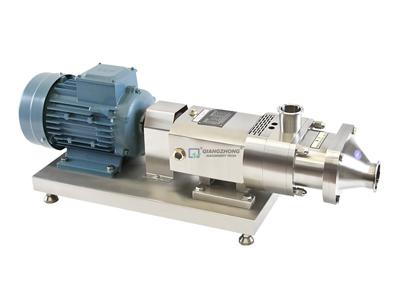

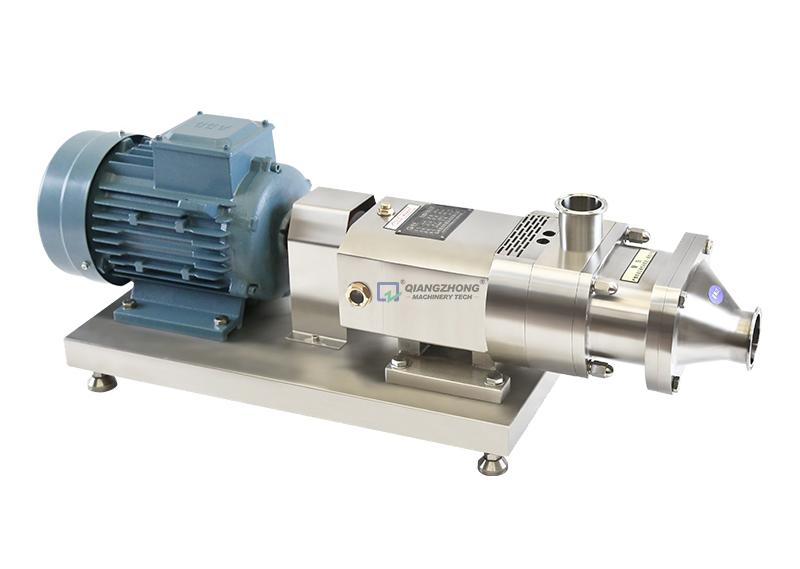

Twin Screw Pump

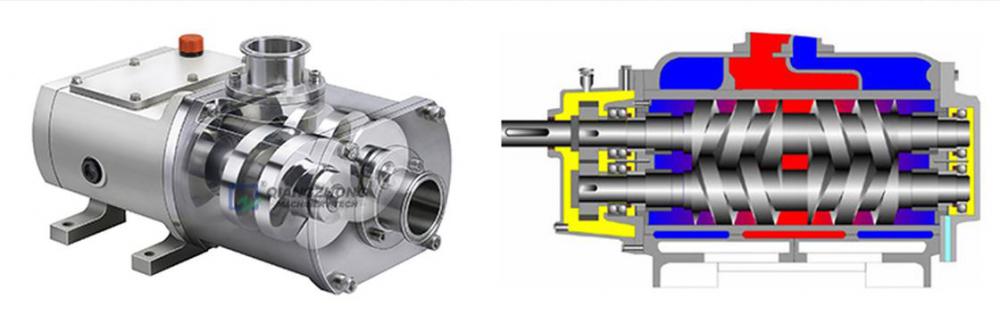

With the open-type and modular sanitary construction, the twin-screw pump mainly consists of gearbox, motor and pump body. All parts in direct contact with materials are made of stainless 304/316L to ensure its sanitary environment. The remaining parts have undergone relevant engineering processes to improve flexibility and durability.
We will work with you to find an optimal solution to cater to your requirements. Our standard range is shown below.
- Flow Rate: 0-145 m³/h
- Differential Pressure: 6-8 bars (26 bars max.)
- Speed: customized (2900 rpm max.)
- Material Viscosity: customized (2000000 cps max.)
- Rotating Direction: customized
- Operating Temperature: 150°C max.
Here are some twin-screw pumps available for customers to choose from.
| Model | Power (kw) | Speed (r/min) | Flow Rate (m3/h) | Pressure (bar) | Inlet and Outlet (mm) |
| JLS-90 | 2.2-4 | 200-2900 | 3 | 6-30 | DN50 |
| JLS-110 | 5.5-7.5 | 200-2900 | 5 | 6-30 | DN65 |
| JLS-140 | 11-18.5 | 200-2900 | 15 | 6-30 | DN80 |
| JLS-160 | 22-30 | 200-2900 | 30 | 6-30 | DN80 |
| JLS-200 | 37-55 | 200-2900 | 50 | 6-30 | DN100 |
