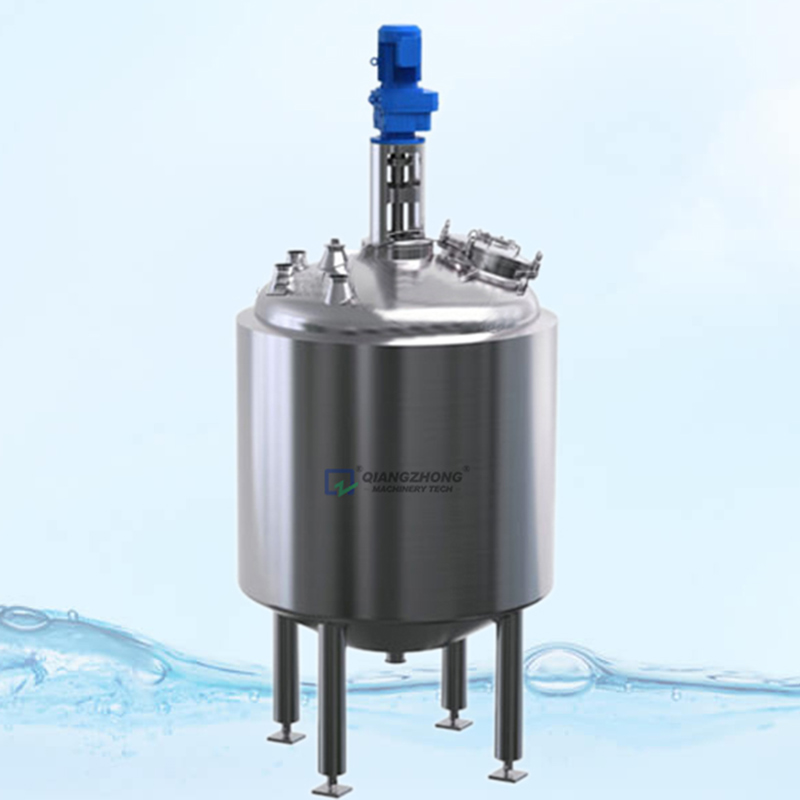

Crystallization Tank

Sanitary crystallizing tanks offer high yield, optimal mixing action and even cooling for regular crystal structure. With the hygienic design, these crystallization tanks are quite suitable for the food, beverage, dairy product, chemical, and pharmaceutical industry.

Inquiry Form

Design Pressure: 0.1MPa-1.0MPa

Treatment: mechanical polishing, sandblasting, pickling

Polishing Accuracy: internal wall 0.4μm, external wall 0.6μm

Inner Body: 304, 316L stainless steel

Jacket: 304 stainless steel

Insulated Layer: rock wool or polyurethane

Inlet and Outlet: quick change chuck interface, flange

• Our crystallization tanks are available in a wide range of volumes from 600L to 20000L. On the basis of the customer's individual requirements, we can design and manufacture your custom sanitary crystallizing tanks.
• The curved blade paddle agitator increases heat transfer area, improve heat transfer efficiency, enhance crystallization capacity, and facilitate feeding and discharging.
