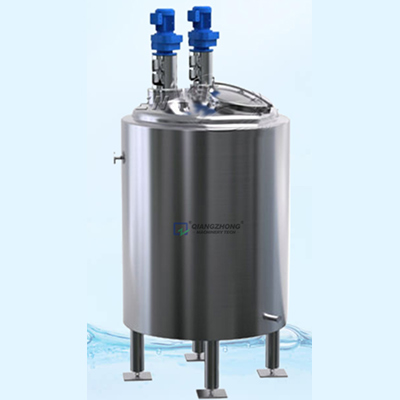

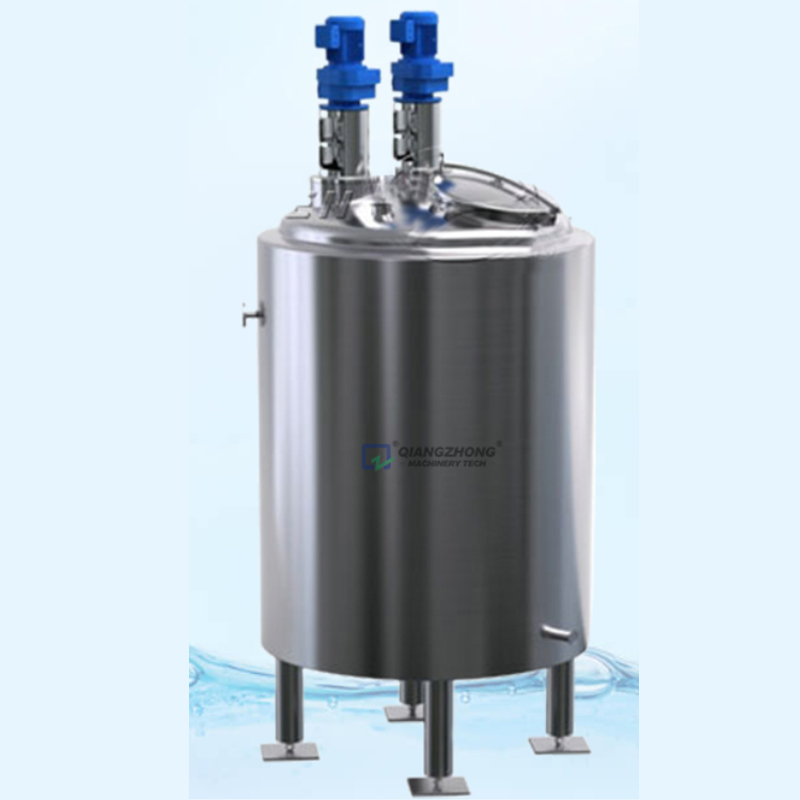

Emulsifying Tank
Applications
Emulsifying tanks are suitable for the production of industrial products such as cosmetics, medicine, food, chemistry, dyeing and printing ink, especially for highly viscous materials containing high solid contents.
Design Pressure: 0.02MPa-0.8MPa (tank body) / 0.02MPa-0.5MPa (jacket)
Design Temperature: 0℃-160℃ (customized)
Treatment: mechanical polishing, sandblasting, pickling
Polishing Accuracy: internal wall 0.4μm, external wall 0.6μm
Inner Body: 304, 316L stainless steel
Jacket: 304 stainless steel
Insulated Layer: rock wool or polyurethane
Feet: 304 stainless steel
Inlet & Outlet: quick change chuck interface, flange
| Volume (L) | Body (mm) | Mixing | Emulsifying | |||
| Diameter | Height | Power (kW) | Speed (r/min) | Power (kW) | Speed (r/min) | |
| 600 | 900 | 900 | 1.1 | 22 (customized) | 4 | customized |
| 1000 | 1100 | 1000 | 1.5 | 7.5 | ||
| 2000 | 1300 | 1500 | 2.2 | 7.5 | ||
| 3000 | 1600 | 1500 | 2.2 | 11 | ||
| 4000 | 1700 | 1800 | 3 | 11 | ||
| 5000 | 1800 | 1800 | 4 | 15 | ||
Features
- The emulsifying tank features compact structure, light weight, easy operation, low noise, and stable performance. Instead of grinding materials, the emulsifying tank can shear, mix, disperse and homogenize materials with high speed.
- Emulsifying tanks come in a variety of volumes ranging from 600L to 20000L. On the basis of your individual needs, we can design and manufacture custom emulsifying tank.
