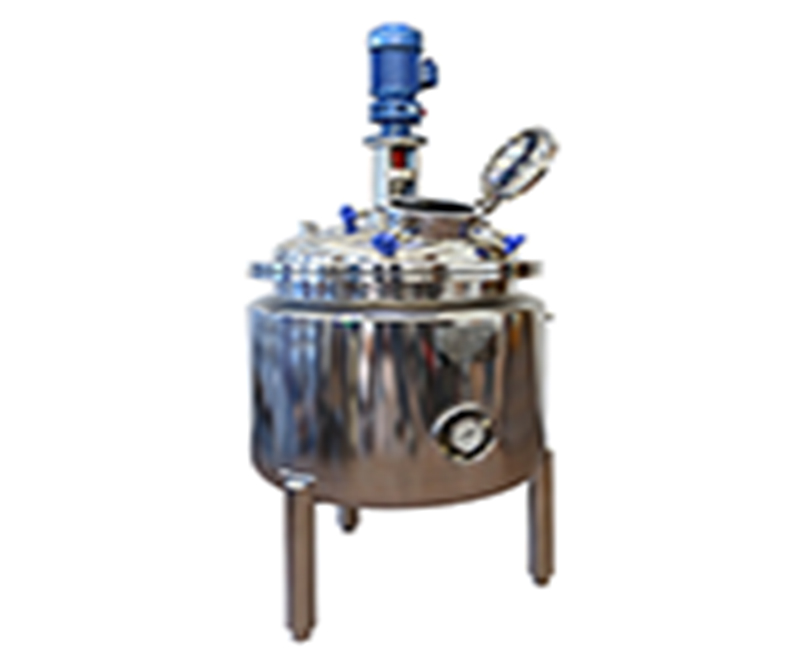

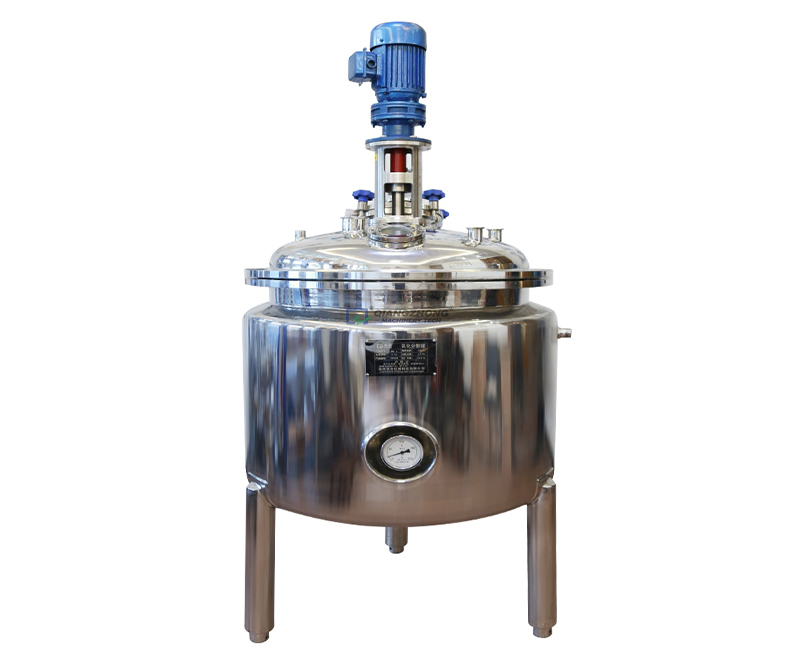

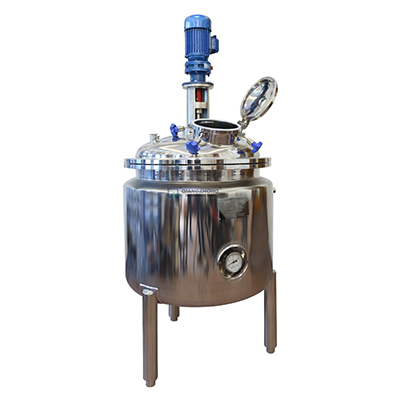

Made of 304 and 314L stainless steel, this type of stainless steel reactor with agitator features precision polishing inside. Added heating and cooling appliances are available if required. With compact structure and strong durability, it is a reliable chemical machine to produce the volume of quality products you need.
Volume (L) | Power (KW) | Nominal Diameter(mm) | Speed (r/min) | Nominal Pressure in kettle (MPa) | Nominal Presure in Kettle Jacket (MPa) |
100 | 0.75 | 550 | 24-120 | 0.1-1.25 | 0.25 |
200 | 0.75 | 600 | |||
500 | 0.75 | 800 | |||
1000 | 1.5 | 1000 | |||
1500 | 1.5 | 1200 | |||
2000 | 1.5 | 1200 | |||
2500 | 2.2 | 1400 | |||
3000 | 2.2 | 1400 | |||
4000 | 3 | 1500 | |||
5000 | 4 | 1500 |
