Our Sanitary stainless steel equipment serves various industries with high sanitary requirements(including food, beverage, personal, care, and pharmaceutical applications)

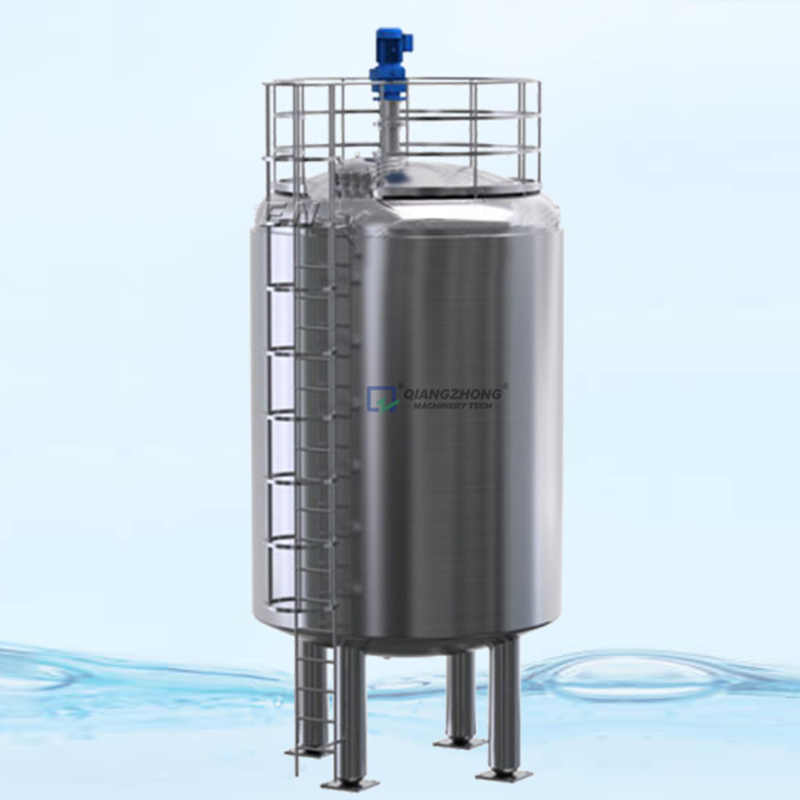

Sanitary Stainless Steel Storage Tank

Applications

With thr rugged stainless steel construction, sanitary storage tanks are widely used to store pure water, injection water and liquid medicine, or as an intermediate buffering container in the pharmaceutical industry. These stainless storage tanks are also suitable for storing the milk, fruit juice and other materials in the food and beverage industry.

Inquiry Form

Technical Parameters

Here are various types of stationary storage tanks available, or please contact us for customized products.

Design Pressure	atm-0.6MPa
Design Temperature	0℃-160℃ (customized)
Treatment	mechanical polishing, sandblasting, pickling
Polishing Accuracy	internal wall 0.3μm, external wall 0.6μm
Inner Body	304, 316L stainless steel
Insulated Layer	rock wool or polyurethane
Feet	304 stainless steel
Inlet & Outlet	quick change chuck interface, flange

Capacity (L)	600	1000	2000	3000	4000	5000	6000	8000	10000	12000	15000	20000
Diameter (mm)	900	1100	1300	1600	1700	1800	1900	2000	2200	2400	2600	2800
Height/Length (mm)	900	1000	1500	1500	1800	1800	2000	2200	2400	2500	2700	3000
Motor Power (kW)	1.1	1.5	2.2	2.2	3	4	4	5.5	7.5	7.5	11	11
Mixing Speed (r/min)	60 (oblique blade paddle impeller) (customized)

Features

The sanitary stainless storage tanks are available in a variety of sizes, ranging from 600L to 20000L. According to your specific needs, we can design and manufacture custom stainless steek storage tank.
The insulation materials used for the insulation layer are rock wool or polyurethane.
With quick change chuck interface, the inner body is made of 304 or 316L stainless steel.
