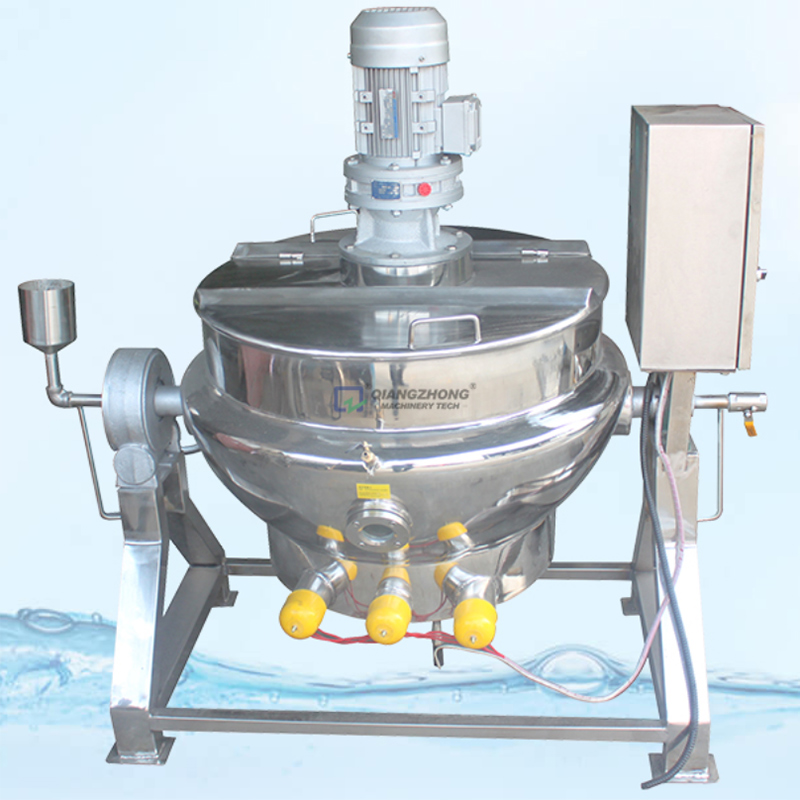

Electric Jacketed Kettle, Tilting
The electric jacketed kettle is commonly equipped with automatic temperature control system and electric control cabinet. The electric jacketed kettle features large heating surface, efficient heat transfer, uniform heating, short boiling time, and easy temperature control. The maximum temperature can reach 320°C.
Technical Parameters
| Nominal Volume (L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | ||||||
| Motor Power (kW) | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | ||||||
| Heating Power (kW) | 12 | 12 | 12 | 18 | 18 | 27 | 27 | 27 | 27 | ||||||
| Inner Layer Thickness (mm) | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 5 | ||||||
| Outer Layer Thickness (mm) | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
| Mixing | yes | ||||||||||||||
| Scrape Surface Agitator | no | ||||||||||||||
| Insulated Layer | no | ||||||||||||||
| Electric Control Cabinet | yes | ||||||||||||||
| Diameter (mm) | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | ||||||
| Depth (mm) | 400 | 150 | 530 | 630 | 680 | 730 | 780 | 830 | 900 | ||||||
| Operating Pressure (Mpa) | ≤0.09 (customized) | ||||||||||||||
| Mixing Speed (r/min) | 36 (customized) | ||||||||||||||
