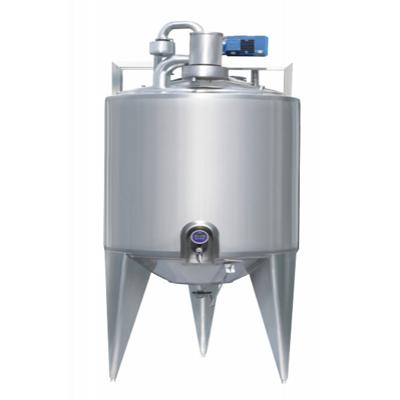

Stainless Steel Steam Jacketed Kettle
With the purpose of controlling temperature, the stainless steel steam jacketed kettle with double layers can add cold water in the middle to lower the temperature elevated by mixing materials. Here are various specifications of steam jacketed kettles available for your selection, or please contact us for customized products.
| Volume (L) | Total Height (mm) | Inlet and Outlet (mm) | Size (mm) | Power (kw) | Speed (r/min) | Insulated Layer (mm) |
| 1000 | 2550 | 51 | 1060x1220 | 0.75 | 960 | 60 |
| 1500 | 2850 | 51 | 1160x1500 | 1.1 | 960 | 60 |
| 2000 | 2900 | 51 | 1340x1500 | 1.1 | 960 | 60 |
| 3000 | 3400 | 51 | 1410x2000 | 1.5 | 960 | 60 |
| 4000 | 3450 | 51 | 1620x2000 | 1.5 | 960 | 60 |
| 5000 | 3500 | 51 | 1810x2000 | 2.2 | 960 | 60 |
| 6000 | 3550 | 51 | 1980x2000 | 2.2 | 960 | 60 |
| 7000 | 4000 | 51 | 1930x2440 | 3 | 960 | 60 |
| 8000 | 4000 | 51 | 2060x2440 | 3 | 960 | 60 |
| 9000 | 4050 | 51 | 2180x2440 | 3 | 960 | 60 |
| 10000 | 4050 | 51 | 2300x2440 | 3 | 960 | 60 |
| 12000 | 4600 | 51 | 2270x3000 | 4 | 960 | 60 |
| 15000 | 4700 | 51 | 2530x3000 | 4 | 960 | 60 |
| 20000 | 5400 | 51 | 2640x3660 | 5.5 | 960 | 60 |
Inquiry
