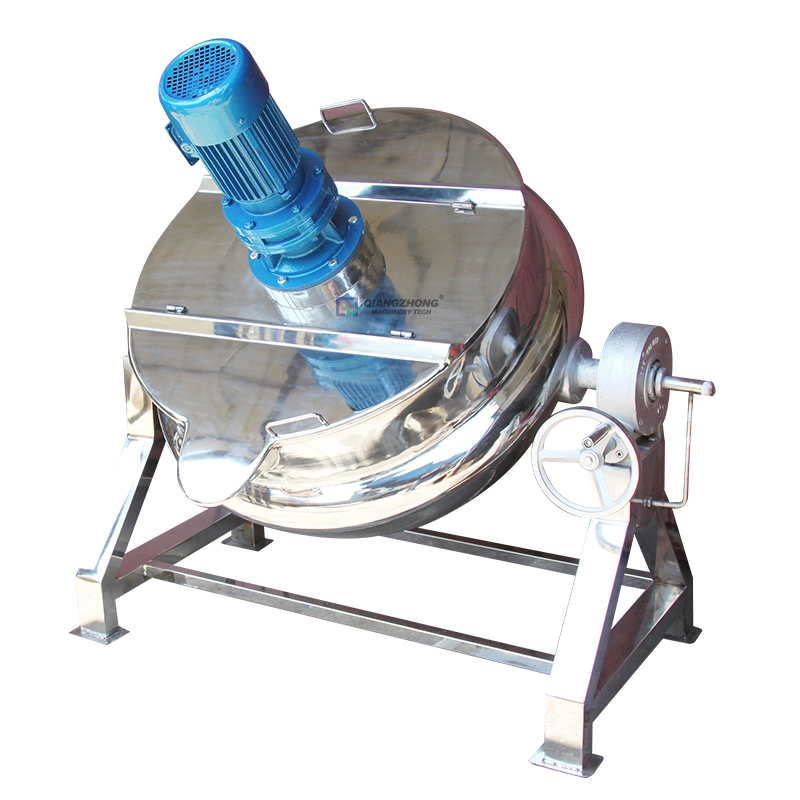

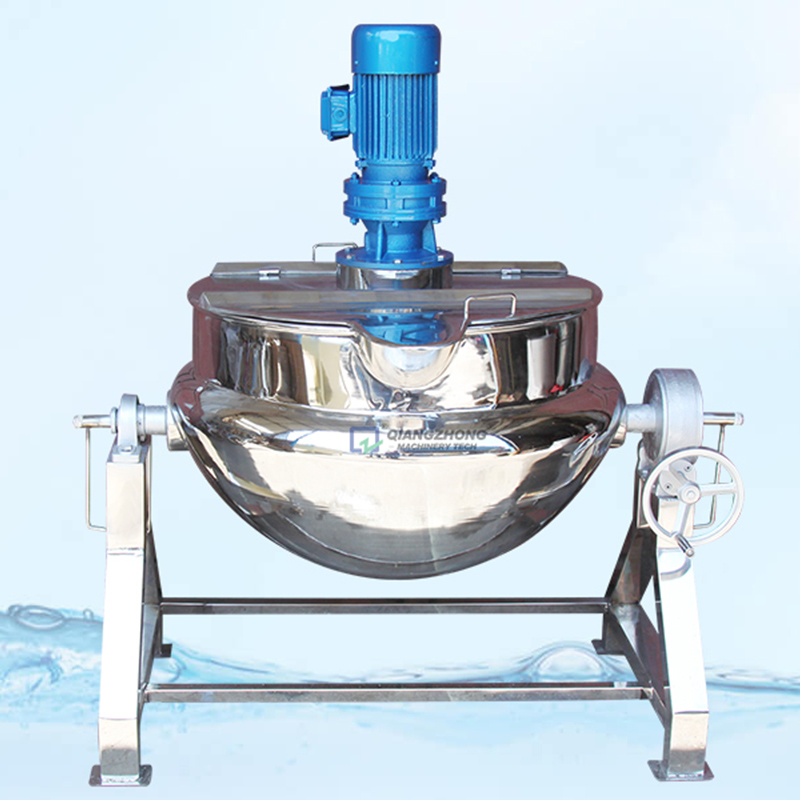

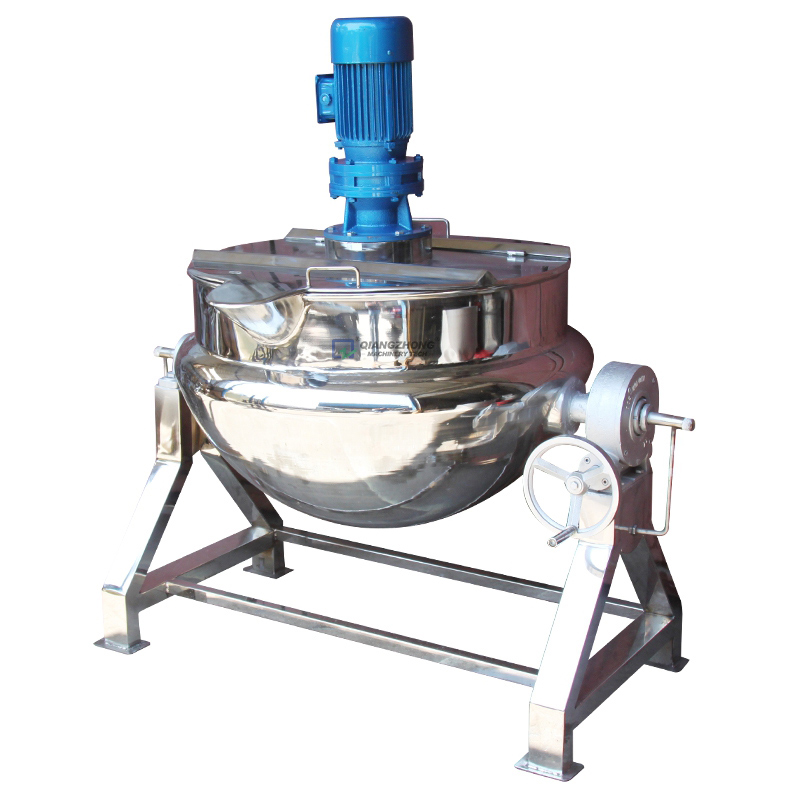

Steam Kettle, Tilting
Steam kettles use steam power to heat the surface of the kettle. The steam kettle provides large heating surface, high thermal efficiency, uniform heating, short heating time and easy temperature control. The nonstick surface makes it easy to clean and mix without any dead corner.
Technical Parameters
| Nominal Volume (L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| Motor Power (kW) | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 |
| Heating Power (kW) | 12 | 12 | 12 | 18 | 18 | 27 | 27 | 27 | 27 |
| Inner Layer Thickness (mm) | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 5 |
| Outer Layer Thickness (mm) | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
| Mixing | yes | ||||||||
| Scrape Surface Agitator | no | ||||||||
| Insulated Layer | no | ||||||||
| Electric Control Cabinet | yes | ||||||||
