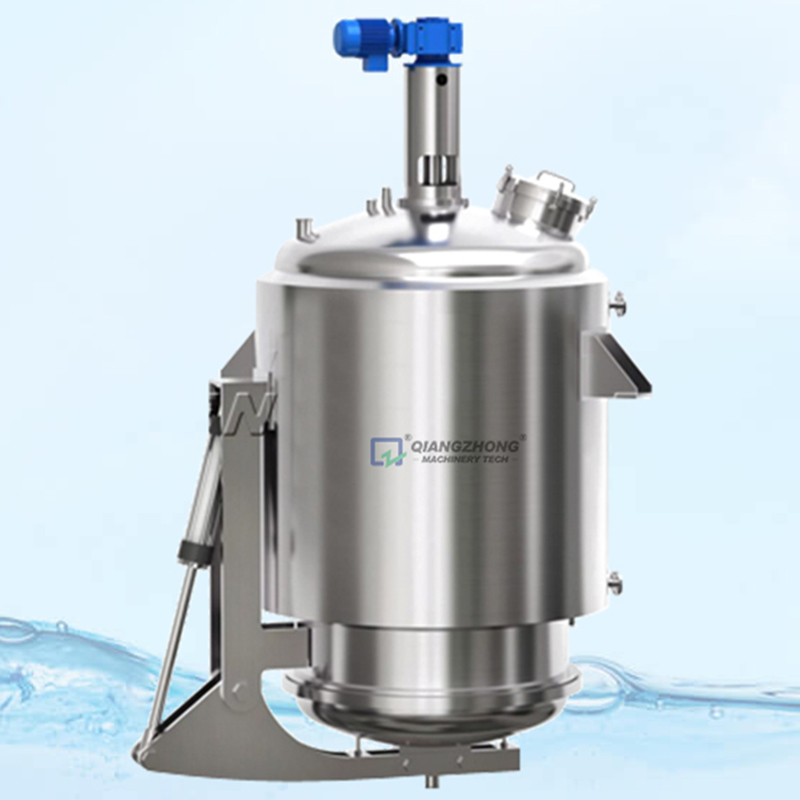

Multi-function Extraction Tank
Stainless Steel Sanitary Tanks, Sanitary Stainless Steel Tanks & Vessels
In the multi-function extraction tank, the material can be extracted by mixing with water or an organic solvent. Our multi-function extraction tanks serve a variety of industries including pharmaceutical, food, and chemical industry.
Design Pressure: atm-0.8MPa
Design Temperature: 0℃-160℃ (customized)
Treatment: mechanical polishing, sandblasting, pickling
Polishing Accuracy: internal wall 0.4μm, external wall 0.6μm
Inner Body: 304, 316L stainless steel
Jacket: 304 stainless steel
Insulated Layer: rock wool
Inlet & Outlet: quick change chuck interface, flange
Technical Parameters
| Capacity (L) | Tank | Mixing | ||
| Diameter (mm) | Height (mm) | Motor Power (kW) | Mixing Speed (r/min) | |
| 2000 | 1300 | 1500 | 2.2 | 35 (helix type) or customized |
| 3000 | 1600 | 1500 | 3 | |
| 5000 | 1800 | 1800 | 4 | |
| 6000 | 1900 | 2000 | 5.5 | |
| 8000 | 2000 | 2200 | 7.5 | |
Features
- Our extraction tanks come in a very wide variety of sizes, ranging from 2000L to 8000L. We can design and manufacture the extraction tank as your request.
- The pneumatically operated discharge gates are safe and reliable. The gate provides the maximum protection in the sudden loss of power or gas.
- The quick change chuck interface can be customized with your specific requirements such as polishing or wiredrawing.
