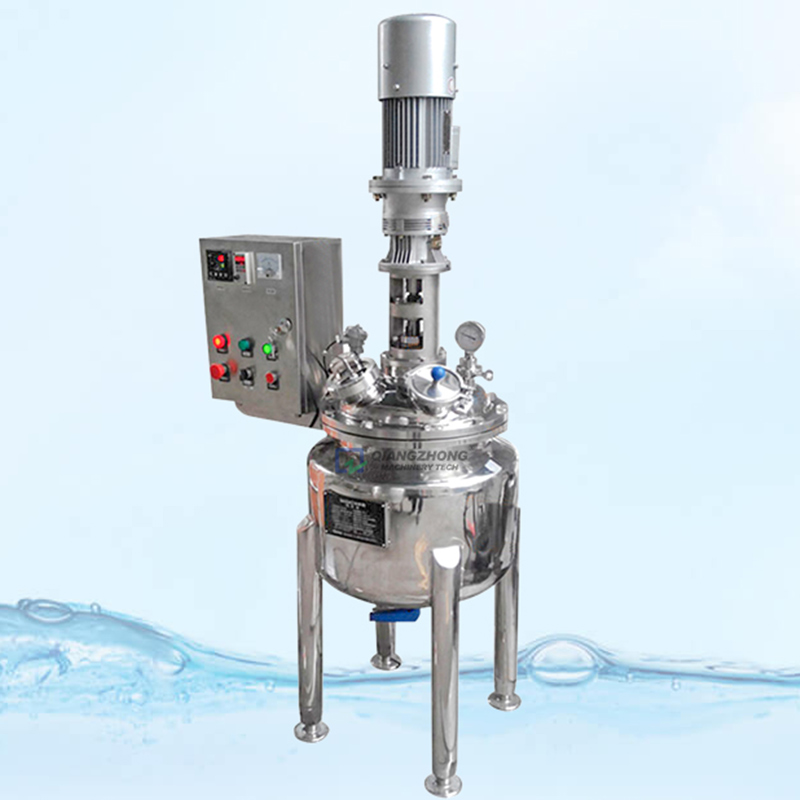

Stirred Tank Reactor for Enzymatic Hydrolysis
Sanitary Stainless Steel Tank, Continuous Stirred Tank Reactors
Stirred tank reactors for enzymatic hydrolysis meets the demand of heating, cooling, keeping temperature and mixing. The enzymes would easily deactivate in a stirred tank reactor. Thus these stirred tank reactors are commonly applied to the food, beverage, bioengineering, and pharmaceutical industry.
Nominal Volume: 35L (without upper headspace volume)
Operating Pressure: atm-0.02Mpa (tank body) / 0.3Mpa (jacket)
Operating Temperature: tank body temperature ≤130℃ / jacket temperature ≤135℃
Mixing Power: 0.55kW+0.03kW/380V/variable frequency motor
Body Material: SUS304 stainless steel
Body Inner Surface Treatment: mirror polishing (Ra=0.4μm)
Dimension: (LxWxH) 880x550x1650 mm
Mixing Speed: 0-155 r/min
Jacket Heat Transferring Medium: steam / water (we do not provide the medium)
Inlet and Outlet: Ø32 / Ø51 pipes (quick change chuck connection)
Distance from Outlet to Floor: 400mm
Weight: 133kg
