Our Sanitary stainless steel equipment serves various industries with high sanitary requirements(including food, beverage, personal, care, and pharmaceutical applications)

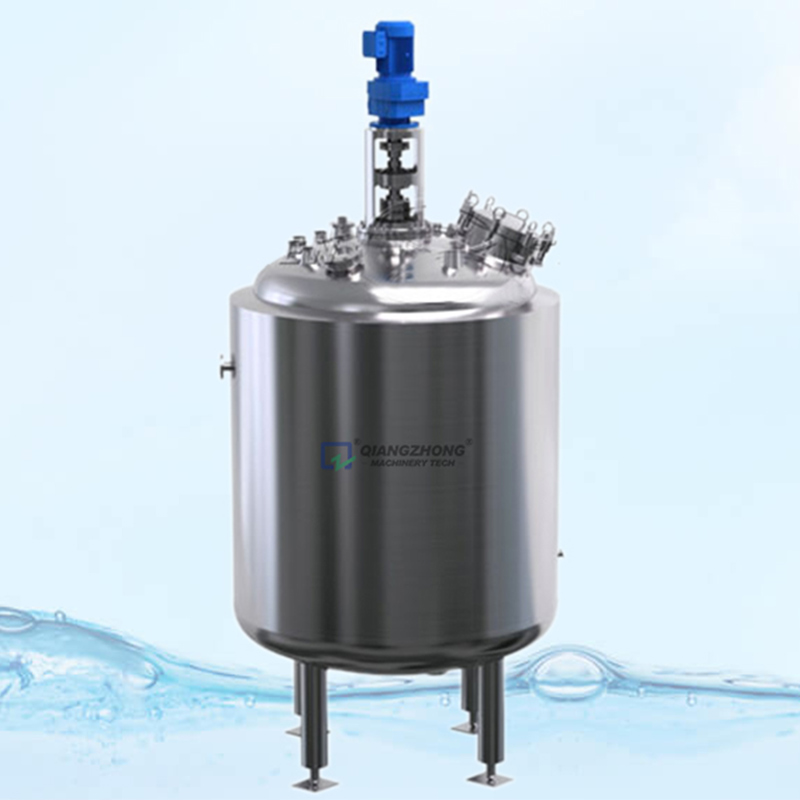

Liquid Blending/ Mixing Vessels

Stainless Steel Sanitary Tanks, Industrial Blending Mixer, High Shear Mixer

Liquid blending/mixing vessels are designed for the mixing and storage of the liquid materials in a variety of industries, such as the traditional Chinese medicine, beverage, diary product, and beer industry.

Inquiry Form

Design Pressure: 0.1MPa-0.6MPa

Design Temperature: 0℃-160℃ (customized)

Inner Body: 304, 316L stainless steel

Jacket: 304 stainless steel

Insulated Layer: rock wool or polyurethane

Polishing Accuracy: internal wall 0.4μm, external wall 0.6μm

• Our liquid mixing vessels are available of a very wide range of volumes from 100L to 5000L. We can design and manufacture custom liquid bending vessel as your request.
• With quick change chuck interface, the inner body is made from 304 or 316L stainless steel, with the mirror polished internal surface of Ra≤0.28μm-0.6μm. The external surface can be treated with your specific requirements such as polishing, wiredrawing, and sandblasting.
• According to your specific needs, our liquid mixing vessels are provided with heating, cooling, low speed and high speed mixing system, sealing pressure system, vacuum system, measuring system, and more.
• Based on mixing materials and specific requirements of the mixing effect, the structure of the impellers can be either turbine type, paddle type, anchor type, frame type, screw conveyor or other.
