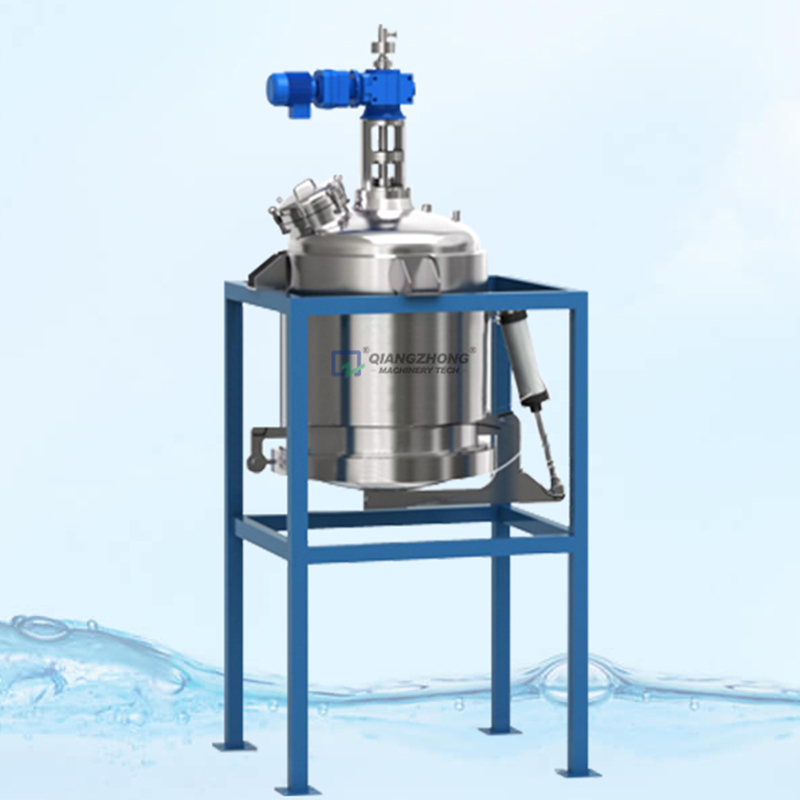

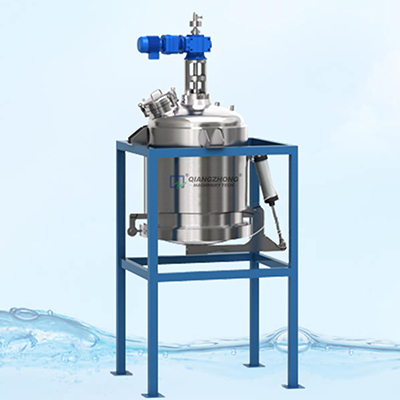

Stainless Steel Coffee Extraction Tank
Sanitary Stainless Steel Tank, Sanitary Stainless Steel Tanks & Vessels
Stainless steel coffee extraction tanks are widely used for coffee extraction. The mechanical mixing combines with penumatically operated control to achieve automatical trub discharge.
The following data is for reference only, that can be customized according to customer requirements.
Design Pressure: 0.02MPa-0.8MPa
Design Temperature: tank body could be customized as requested (0℃-160℃)
Inner Body: 304, 316L stainless steel
Insulated Layer: rock wool (insulating)
Inlet & Outlet: quick change chuck interface, flange
Treatment: mechanical polishing, sandblasting, pickling
Polishing Accuracy: internal wall 0.4μm, external wall 0.6μm
| Capacity (L) | Diameter (mm) | Height (mm) | Motor Power (kW) | Mixing Speed (r/min) |
| 500 | 900 | 1000 | 1.5 | 60 |
| 1000 | 1100 | 1100 | 1.5 | |
| 1500 | 1250 | 1200 | 1.5 | |
| 2000 | 1300 | 1500 | 2.2 | |
| 3000 | 1600 | 1500 | 2.2 | |
| 5000 | 1800 | 1800 | 4 |
Features
- Our coffee extraction tanks come in a very wide variety of sizes, ranging from 500L to 5000L. If needed, we can design and manufacture the coffee extraction tank as your request.
- The pneumatically operated self-locking discharge gates are safe and reliable with excellent sealing performance. The gate won't automatically open in the sudden loss of power or gas, providing the maximum protection.
- With quick change chuck interface, the inner body is made from 304 or 316L stainless steel, with the mirror polished internal surface of Ra≤0.28μm-0.6μm. The external surface can be treated with your specific requirements such as polishing, wiredrawing, and sandblasting.
