Our Sanitary stainless steel equipment serves various industries with high sanitary requirements(including food, beverage, personal, care, and pharmaceutical applications)

•

•

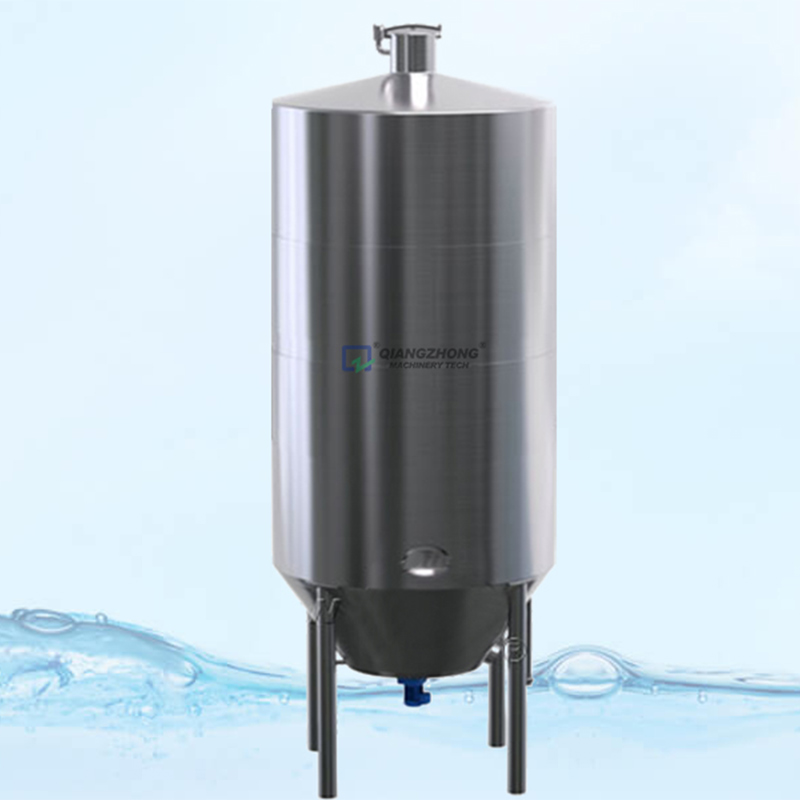

Wine Fermentation Vessel, Wine Fermenter

Stainless Steel Sanitary Tanks, Beer & Wine Fermentation Equipment

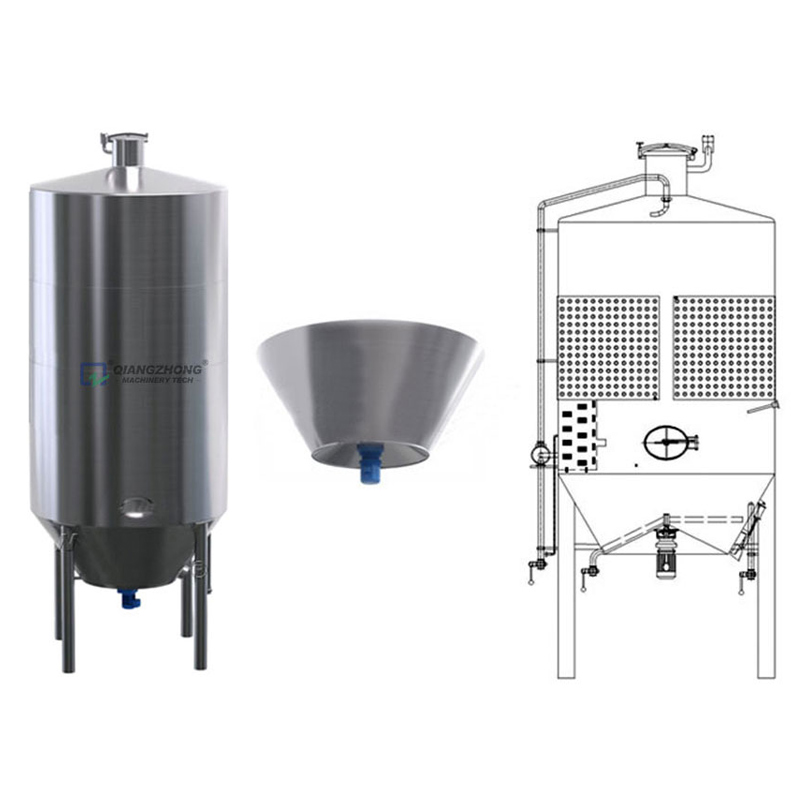

Wine fermentation vessels are specifically designed as fermentation containers to facilitate and control the wine fermentation process. These wine fermenters promote a complete and clean fermentation, allowing for easy trub discharge. Thus our wine fermentation vessels are quite ideal for wine making that turns grape juice into an alcoholic beverage. If you have further requirements, please contact us for custom service.

Inquiry Form

The following is the standard configuration for reference and it can be customized according to customer requirements.

Design Pressure: atmospheric pressure (tank body) / 0.4MPa (jacket)

Design Temperature: atmospheric temperature (tank body) / 0℃-7℃ (jacket)

Treatment: mechanical polishing, sandblasting, pickling

Polishing Accuracy: internal wall 0.4μm, external wall 0.6μm

Inner Body: 304, 316L stainless steel

Jacket: 304 stainless steel

Insulated Layer: polyurethane (cold insulation)

Inlet and Outlet: quick change chuck interface, flange

• Our wine fermenters come in different sizes such as 10m³, 19m³, and 25m³. If needed, we can design and manufacture the custom wine fermenter as your request.
• While cooling, the pump will circulate chilled water or refrigerant water through a jacket. The jacket is coated with an insulation layer of polyurethane foam (cold insulation).
• With quick change chuck interface, the inner body is made from 304 or 316L stainless steel, with the mirror polished internal surface of Ra≤0.28μm-0.6μm. The external surface can be treated with your specific requirements such as polishing, wiredrawing, and sandblasting.
