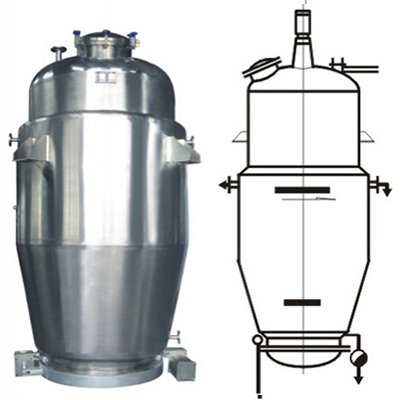

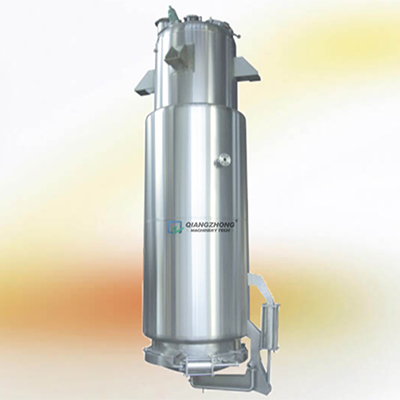

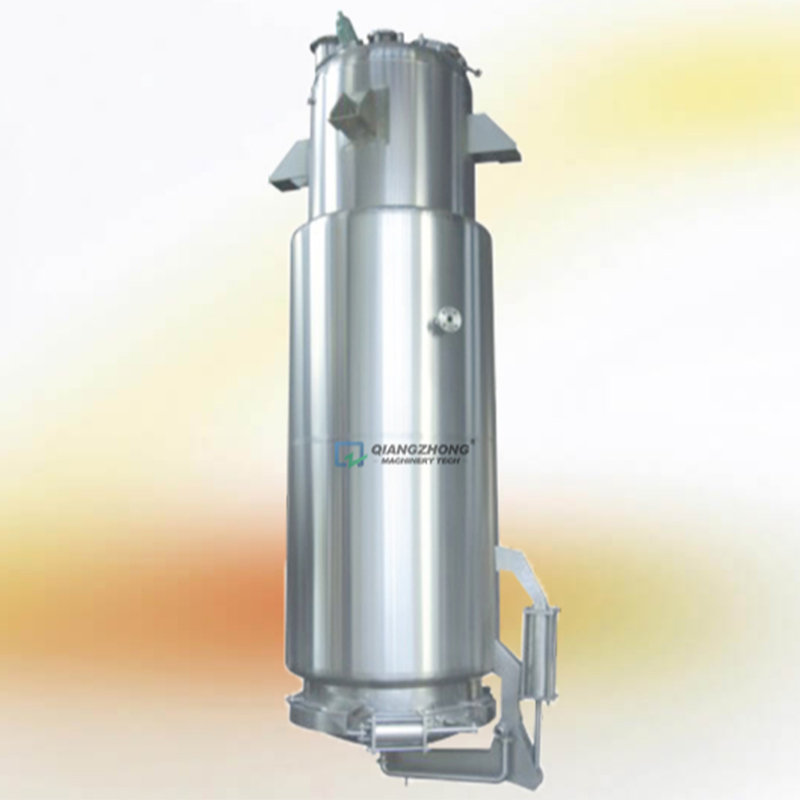

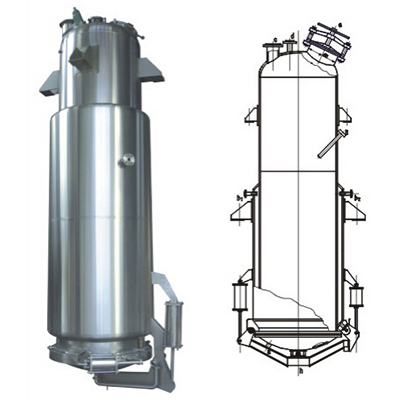

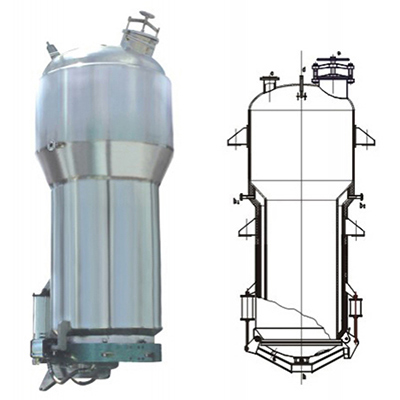

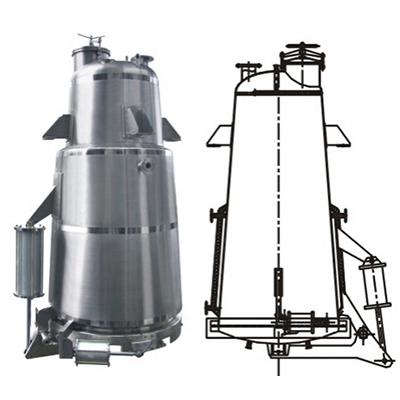

TQ Series Stainless Steel Extraction Tank
Brewing & Extraction Systems, Stainless Steel Tank
TQ series stainless steel extraction tanks are widely used for maceration, percolation, decoction, hot continuous extraction, essential oil extraction, and organic solvent recycling in the food, beverage, chemical and biological industry. These extraction tanks perform well in dynamic extraction and counter-current extraction, with short time and high extract content.
| Model | TQ-M-1.0 | TQ-M-2.0 | TQ-M-3.0 | TQ-M-6.0 | TQ-M-8.0 | TQ-M-10.0 |
| Volume (L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
| Design Pressure of Tank Body (Mpa) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Design Pressure of Jacket (Mpa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Compressed Air Pressure (Mpa) | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 |
| Inlet Diameter (mm) | 400 | 400 | 400 | 500 | 500 | 500 |
| Heating Surface (m2) | 3 | 4.7 | 6 | 7.5 | 9.5 | 12 |
| Condensation Surface (m2) | 6 | 8 | 10 | 12 | 16 | 20 |
| Cooling Surface (m2) | 1 | 1 | 1 | 2 | 2 | 3 |
| Filter Surface (m2) | 3 | 3 | 3 | 5 | 5 | 6 |
| Discharge Gate Diameter (mm) | 800 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Energy Consumption (kg/h) | 245 | 325 | 345 | 646 | 720 | 850 |
| Model | TQ-T-1.0 | TQ-T-2.0 | TQ-T-3.0 | TQ-T-6.0 | TQ-T-8.0 | TQ-T-10.0 |
| Volume (L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
| Design Pressure of Tank Body (Mpa) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Design Pressure of Jacket (Mpa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Compressed Air Pressure (Mpa) | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 |
| Inlet Diameter (mm) | 400 | 400 | 400 | 500 | 500 | 500 |
| Heating Surface (m2) | 3 | 4.7 | 6 | 7.5 | 9.5 | 12 |
| Condensation Surface (m2) | 6 | 8 | 10 | 12 | 16 | 20 |
| Cooling Surface (m2) | 1 | 1 | 1 | 2 | 2 | 3 |
| Filter Surface (m2) | 3 | 3 | 3 | 5 | 5 | 6 |
| Discharge Gate Diameter (mm) | 800 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Energy Consumption (kg/h) | 245 | 325 | 345 | 646 | 720 | 850 |
| Model | TQ-D-0.5 | TQ-D-1.0 | TQ-D-2.0 | TQ-D-3.0 | TQ-D-6.0 | TQ-D-8.0 |
| Volume (L) | 750 | 1200 | 2300 | 3400 | 6400 | 8500 |
| Design Pressure of Tank Body (Mpa) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Design Pressure of Jacket (Mpa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Compressed Air Pressure (Mpa) | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 |
| Inlet Diameter (mm) | 150 | 200 | 200 | 30 | 350 | 400 |
| Heating Surface (m2) | 2 | 3.2 | 5.3 | 6.8 | 8.5 | 10.5 |
| Condensation Surface (m2) | 5 | 6 | 8 | 10 | 12 | 16 |
| Cooling Surface (m2) | 0.5 | 1 | 1 | 1 | 2 | 2 |
| Filter Surface (m2) | 3 | 3 | 3 | 3 | 3 | 3 |
| Discharge Gate Diameter (mm) | 800 | 1000 | 1200 | 1500 | 1700 | 1900 |
| Energy Consumption (kg/h) | 145 | 196 | 258 | 300 | 552 | 728 |
| Model | TQ-Z-1.0 | TQ-Z-2.0 | TQ-Z-3.0 | TQ-Z-6.0 | TQ-Z-8.0 | TQ-Z-10.0 |
| Volume (L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
| Design Pressure of Tank Body (Mpa) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Design Pressure of Jacket (Mpa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Compressed Air Pressure (Mpa) | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 |
| Inlet Diameter (mm) | 400 | 400 | 400 | 500 | 500 | 500 |
| Heating Surface (m2) | 3 | 4.7 | 6 | 7.5 | 9.5 | 12 |
| Condensation Surface (m2) | 6 | 8 | 10 | 12 | 16 | 20 |
| Cooling Surface (m2) | 1 | 1 | 1 | 2 | 2 | 3 |
| Filter Surface (m2) | 3 | 3 | 3 | 5 | 5 | 6 |
| Discharge Gate Diameter (mm) | 800 | 800 | 800 | 1000 | 1000 | 1000 |
| Energy Consumption (kg/h) | 245 | 325 | 345 | 646 | 720 | 850 |
