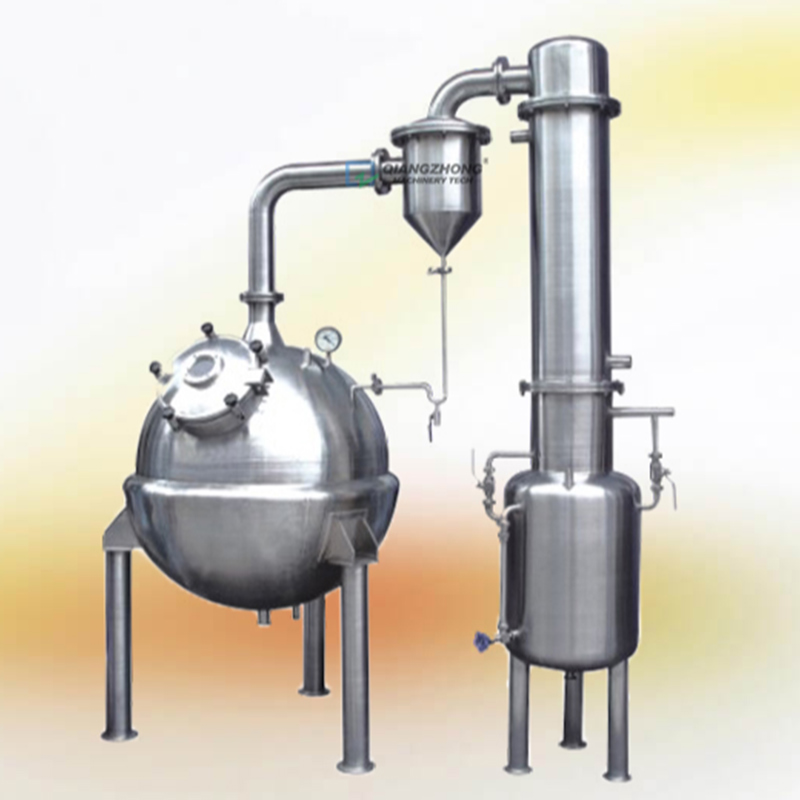

QN Series Stainless Steel Extraction Tank
Brewing & Extraction Systems, Sanitary Extract Processing Tank
QN series stainless steel extraction tanks are commonly used for concentrating liquid materials and recycling organic solvents in the food, chemical, and pharmaceutical industry. These extraction tanks concentrate liquid materials under the reduced pressure by using less time. Besides, QN series extraction tanks process heat sensitive materials well.
| Model | QN-300 | QN-500 | QN-700 | QN-1000 | QN-1500 | QN-2000 | ||
| Evaporation Capacity (kg/h) | 70 | 120 | 145 | 195 | 250 | 350 | ||
| Volume (L) | 300 | 500 | 700 | 1000 | 1500 | 2000 | ||
| Ball Inner Diameter (mm) | 800 | 990 | 1115 | 125 | 1400 | 1600 | ||
| Vapor Pressure (Mpa) | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | ||
| Vacuum Degree (Mpa) | -0.05~0.08 | -0.05~0.08 | -0.05~0.08 | -0.05~0.08 | -0.05~0.08 | -0.05~0.08 | ||
| Heating Surface (m2) | 1.6 | 2 | 2.3 | 3.2 | 4 | 5.2 | ||
| Condensation Surface (m2) | 3.9 | 5 | 5.8 | 8.2 | 11 | 16 | ||
| Dimension (mm) | Length(L) | 1900 | 2030 | 2100 | 2335 | 2500 | 2750 | |
| Width (W) | 1100 | 1200 | 1300 | 1520 | 1700 | 1800 | ||
| Height (H) | 2300 | 2500 | 2600 | 2765 | 2900 | 3100 | ||
| Water Consumption (t/h) | 5 | 5 | 8 | 8 | 10 | 12 | ||
| Vapor Inlet (mm) | 32 | 32 | 32 | 40 | 40 | 40 | ||
| Water Inlet (mm) | 32 | 32 | 40 | 40 | 50 | 50 | ||
