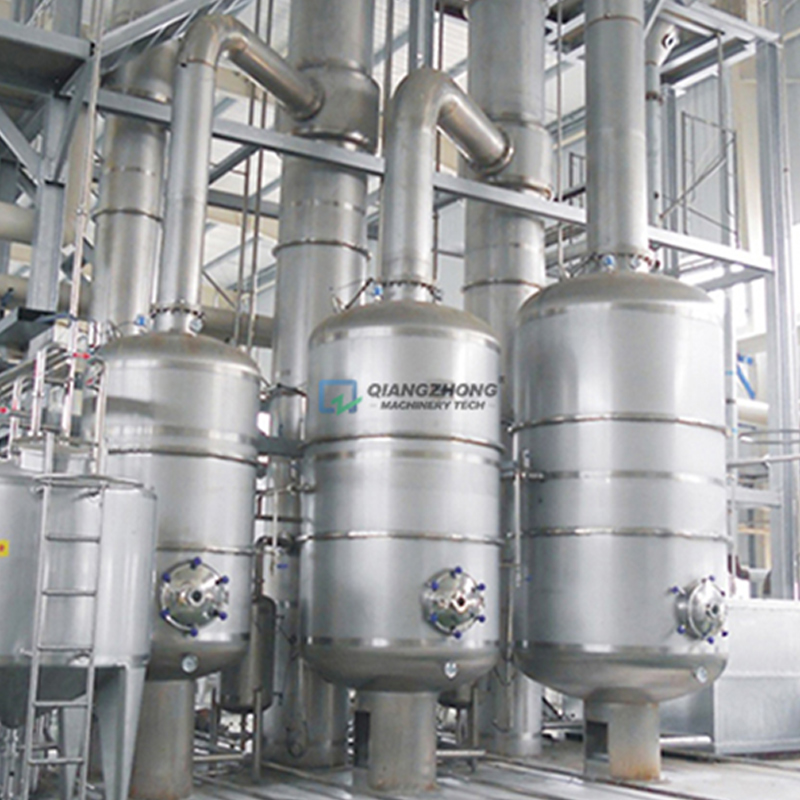

SJM Series Stainless Steel Extraction Tank
Brewing & Extraction Systems, Sanitary Stainless Steel Tanks & Vessels
SJM series stainless steel extraction tanks are widely used for evaporating and concentrating liquid or organic solvent in the food, pharmaceutical, and chemical industry. These extraction tanks have continuous concentrations at low temperature under a vacuum condition, especially ideal for processing heat sensitive materials such as fermentation broth and organic acids.
| Model | SJM-500 | SJM-1500 | SJM-2000 | SJM-2500 | SJM-3000 | |
| Evaporation Capacity (kg/h) | 500 | 1500 | 2000 | 2500 | 3000 | |
| Vapor Pressure (Mpa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| Vapor Consumption (kg/h) | 275 | 825 | 1100 | 1375 | 1650 | |
| Cooling Water Consumption (t/h) | 13.5 | 40.5 | 54 | 67.5 | 81 | |
| Evaporation Temperature (℃) | First Effect | Second Effect | ||||
| 75-80℃ | 55-60℃ | |||||
