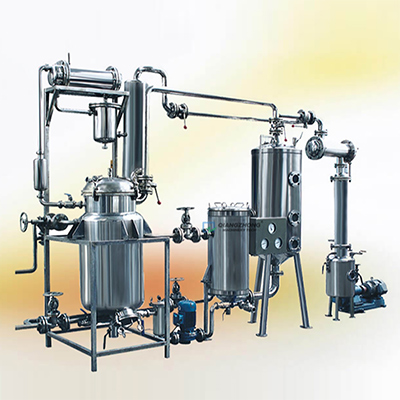

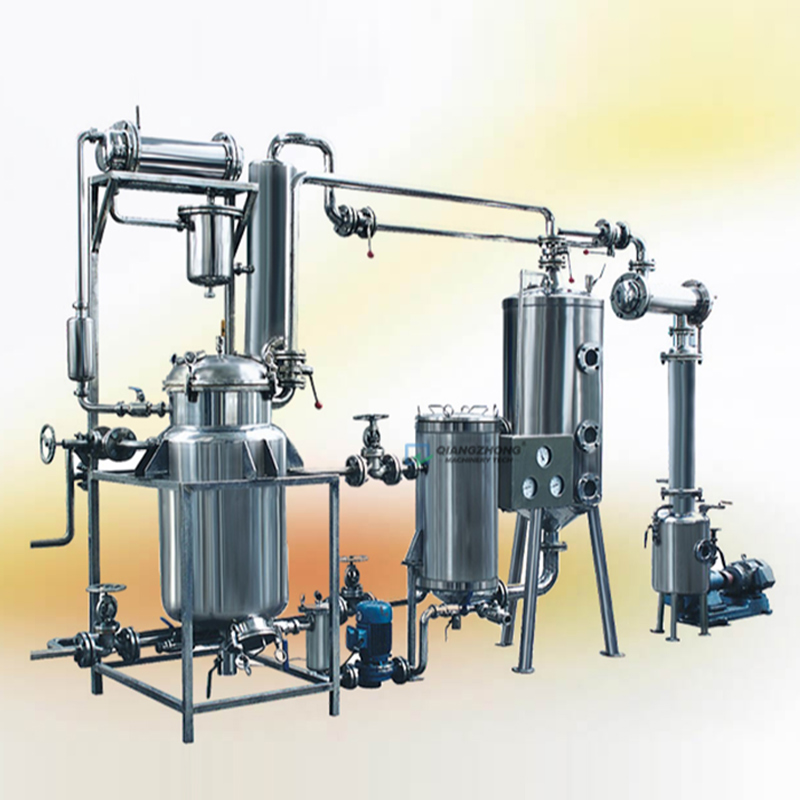

TNH Series Stainless Steel Extraction Tank
TNH series stainless steel extraction tanks extract and concentrate the fresh plants at low temperature, commonly used in the factories, research institutions, universities and colleges.
| Model | TNH-50 | TNH-100 | TNH-200 | TNH-300 | TNH-500 | |
| Extraction Tank | Volume (L) | 65 | 125 | 250 | 375 | 550 |
| Operating Pressure of Jacket (Mpa) | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | |
| Operating Pressure of Tank Body (Mpa) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | |
| Condensation Tank | Volume (L) | 65 | 125 | 25 | 375 | 550 |
| Vacuum Degree of Tank Body (Mpa) | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | |
| Operating Pressure of Heating Tube (Mpa) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | |
| Hot Reflux Extraction Volume (L/H) | 20 | 40 | 80 | 120 | 180 | |
| Vacuum Pump | Voltage (V) | 380 | 380 | 380 | 380 | 380 |
| Power (kW) | 1.5 | 1.5 | 2.2 | 3 | 3 | |
| Power (kW) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | |
