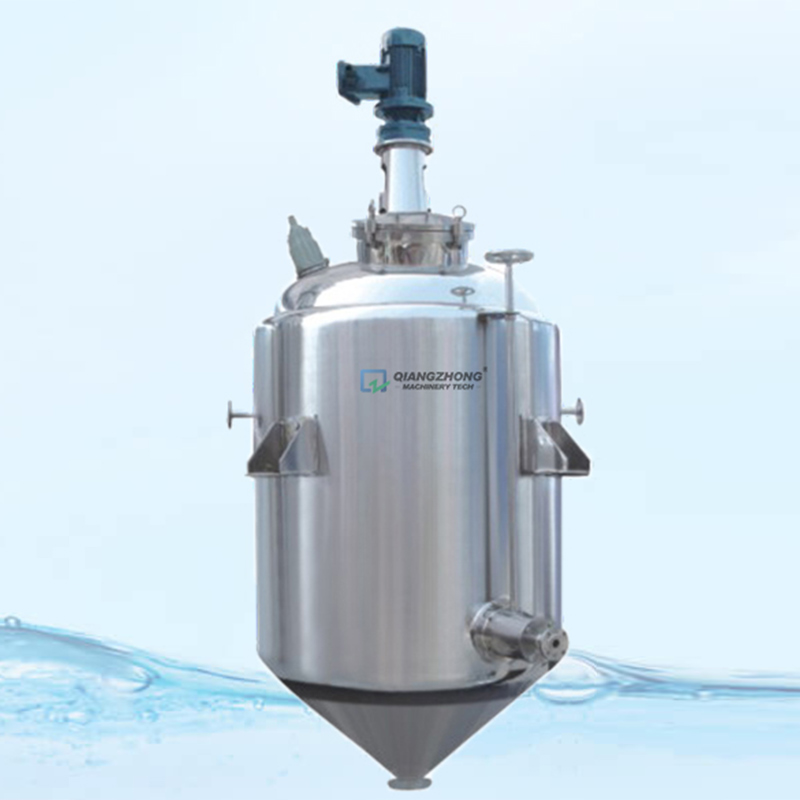

JC Series Stainless Steel Extraction Tank
Brewing & Extraction Systems, Sanitary Extract Processing Tank
JC series stainless steel extraction tanks are specialized processing equipment for alcohol precipitation in the traditional Chinese medicine, food, health care, and chemical industry. The JC series extraction tanks have the rugged stainless steel construction and can be equipped with CIP system for easy cleaning. It is convenient to circulate cooling water throught the jacket during the extraction.
| Model | JC-300 | JC-500 | JC-1000 | JC-1500 | JC-2000 | JC-3000 | JC-6000 | |
| Volume (m3) | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 6.0 | |
| Heat Transfer Surface (m2) | 1.8 | 3.0 | 4.5 | 6.5 | 7.5 | 8.5 | 13.0 | |
| Operating Temperature (℃) | room temperature | |||||||
| Design Pressure of Jacket (Mpa) | 0.09-0.4 | |||||||
| Tank Body Pressure (Mpa) | atmospheric pressure | |||||||
| Mixing Power (kW) | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 3.0 | 5.0 | |
| Mixing Speed (r/min) | 72 | 72 | 72 | 72 | 72 | 72 | 125 | |
| Dimension (mm) | Inner Diameter (d) | 600 | 800 | 1000 | 1200 | 1300 | 1500 | 1600 |
| Outer Diameter (D) | 800 | 1000 | 1200 | 1400 | 1500 | 1700 | 1800 | |
| Height | 900 | 1350 | 1700 | 2200 | 2700 | 2900 | 2700 | |
