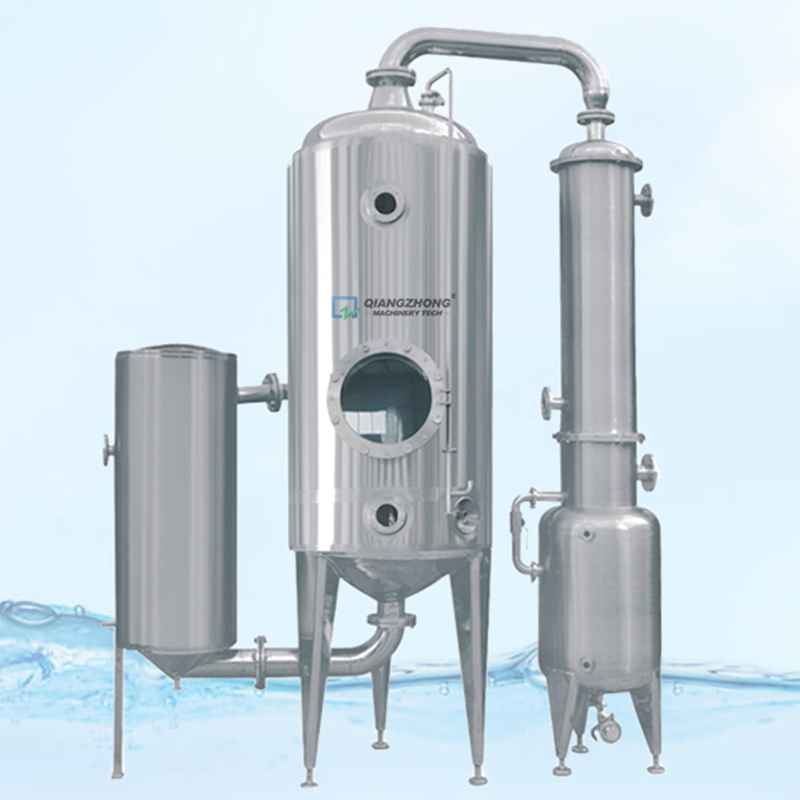

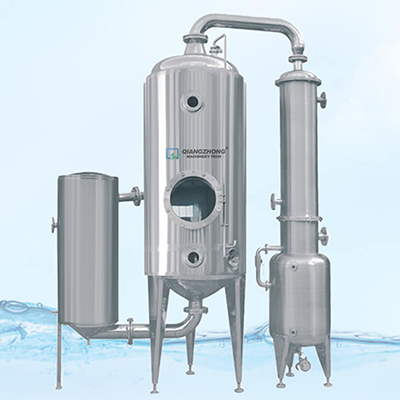

WZ Series Stainless Steel Extraction Tank
Brewing & Extraction Systems, Sanitary Stainless Steel Tanks & Vessels
WZ series stainless steel extraction tanks are suitable for liquid evaporation and concentration in the food, pharmaceutical, and chemical industry. The WZ series feature short concentration time, high evaporation speed, and great extraction performance, ideal for processing heat sensitive materials.
| Model | WZ-500 | WZ-1000 | WZ-1500 | WZ-2000 |
| Evaporation Capacity (kg/h) | 500 | 1000 | 1500 | 2000 |
| Recycled Alcohol Concentration(%) | 85 | 85 | 85 | 85 |
| Vapor Pressure (Mpa) | 0.03-0.09 | 0.03-0.09 | 0.03-0.09 | 0.03-0.09 |
| Vacuum Degree (Mpa) | 0.05-0.08 | 0.05-0.08 | 0.05-0.08 | 0.05-0.08 |
| Heating Surface (m2) | 8 | 15 | 20 | 27 |
| Evaporation Chamber Volume (m3) | 1 | 1.5 | 2 | 2.5 |
| Condensation Surface (m2) | 5.6 (12) | 1.3 (22) | 20 (30) | 28 (36) |
| Cooling Surface (m2) | 4 | 6 | 8 | 10 |
| Liquid Receiver Volume (m3) | 0.3 | 0.5 | 0.8 | 1 |
| Vapor Consumption (kg/h) | 300 | 650 | 900 | 1000 |
| Water Consumption (t/h) | 6 | 10 | 15 | 20 |
| Vapor Heating Port (mm) | 40 | 50 | 50 | 50 |
| Inlet and Outlet of Cooling Water (mm) | 40 | 50 | 50 | 65 |
