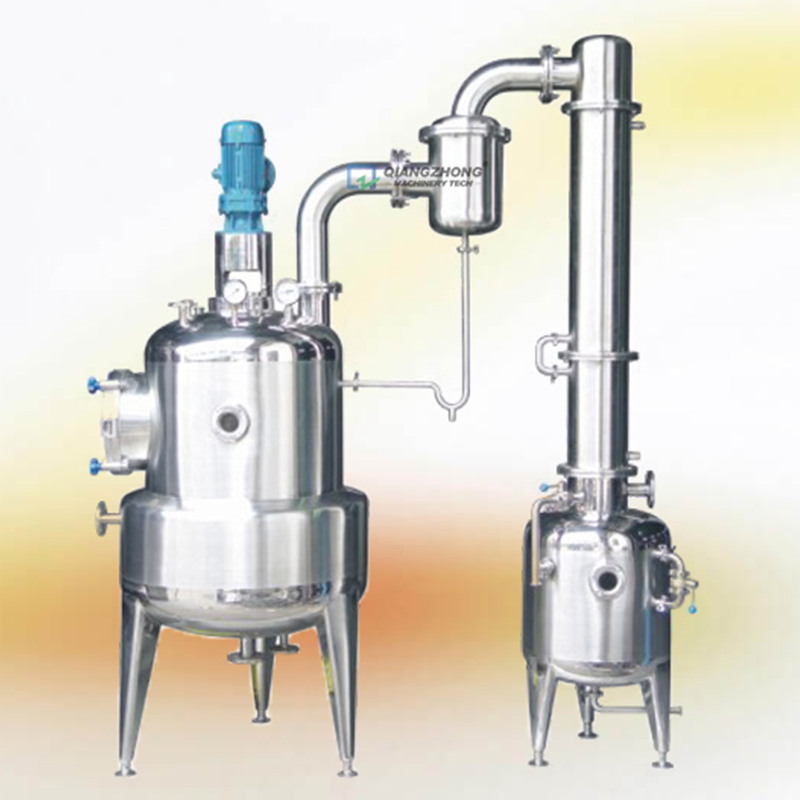

ZN Series Stainless Steel Extraction Tank
ZN series stainless steel extraction tanks allow for vacuum concentration, alcohol recycling and simple reflux extraction of traditional Chinese medicine, food, and health care products. Made of 304 stainless steels, the ZN series extraction tanks are equipped with CIP system for easy cleaning. The automatic feed offers high efficiency.
| Model | ZN-50 | ZN-100 | ZN-200 | ZN-300 | ZN-500 | ZN-700 | ZN-1000 | |
| Volume (L) | 50 | 100 | 200 | 300 | 500 | 700 | 1000 | |
| Liquid Receiver Volume (L) | 35 | 45 | 60 | 76 | 100 | 125 | 165 | |
| Pressure of Jacket (Mpa) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | |
| Vacuum Degree (mmHg) | 600-700 | 600-700 | 600-700 | 600-700 | 600-700 | 600-700 | 600-700 | |
| Heating Surface (m²) | 0.25 | 0.59 | 0.8 | 1.1 | 1.45 | 1.8 | 2.2 | |
| Condensation Surface (m²) | 1.2 | 1.7 | 2.4 | 3.0 | 3.3 | 3.6 | 4.4 | |
| Cooling Surface (m²) | 0.29 | 0.35 | 0.45 | 0.6 | 0.7 | 0.85 | 1.05 | |
| Dimension | Length | 1200 | 1350 | 1700 | 1700 | 2100 | 2400 | 2390 |
| Width | 600 | 700 | 800 | 1000 | 1200 | 1300 | 1300 | |
| Height | 2200 | 2200 | 2700 | 3400 | 3400 | 3400 | 3720 | |
